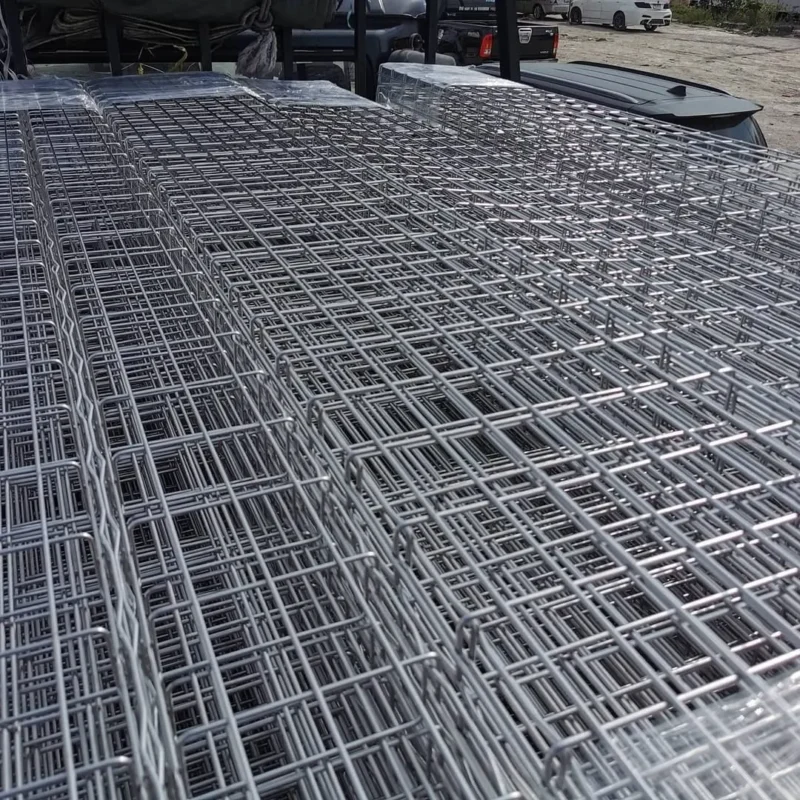

Wire Mesh Cable Tray
Our premium wire mesh cable tray systems offer the perfect cable management solution for commercial and industrial routing. Engineered with high-tensile steel wire, these basket cable trays feature an open-mesh design that ensures maximum ventilation, preventing cable overheating. Available in galvanized wire mesh cable tray (zinc plated / HDG) and stainless steel finishes, they provide exceptional corrosion resistance and high load capacity. The flexible, cut-to-fit structure allows for fast installation, significantly reducing labor costs on-site.
Material : Pre-galvanized, Hot-dip galvanized (HDGC), Stainless Steel
Key Features & Benefits
Optimal Ventilation & Heat Dissipation
- Open-mesh design
- Extends cable lifespan
- Prevents dust accumulation
- Ideal for high-density wiring

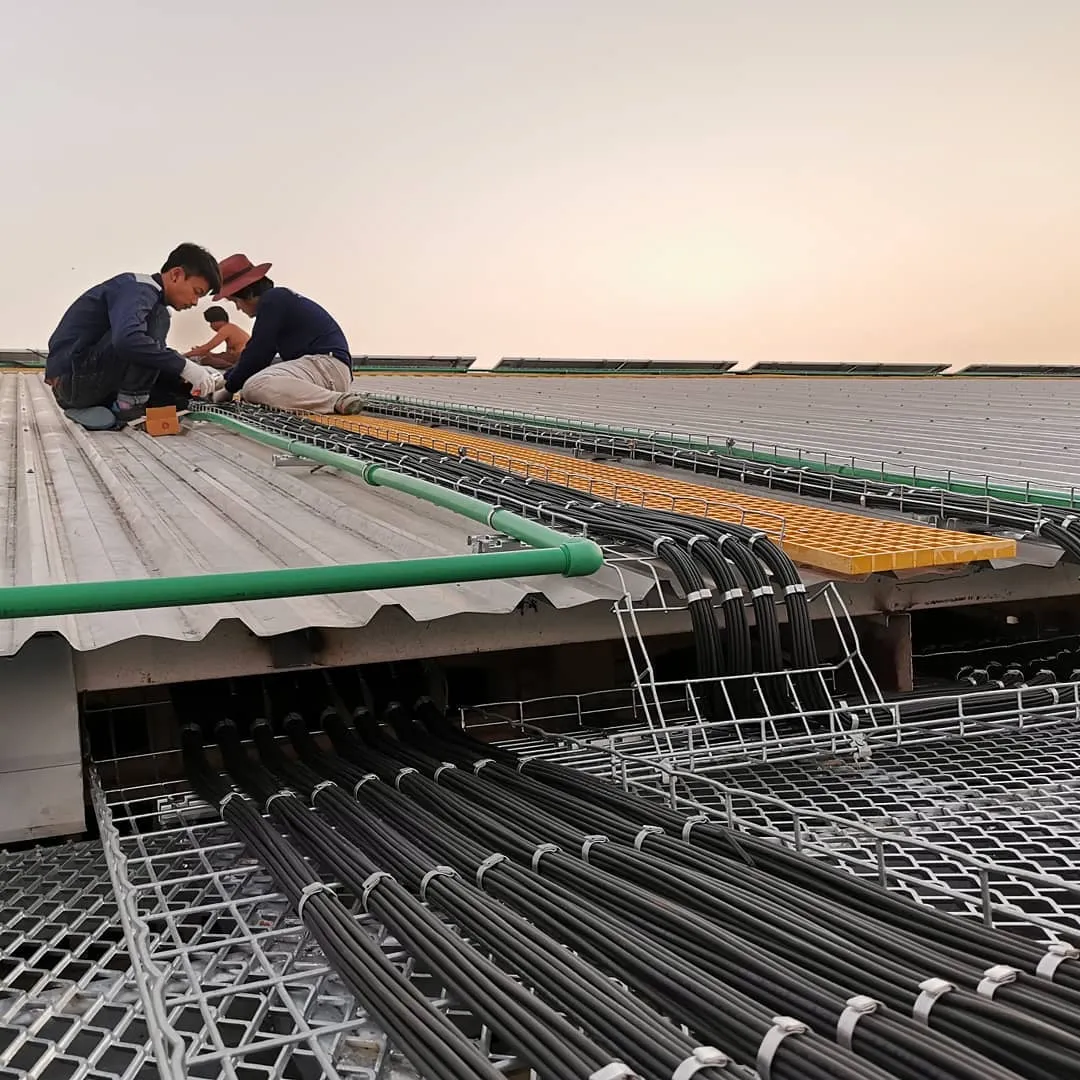

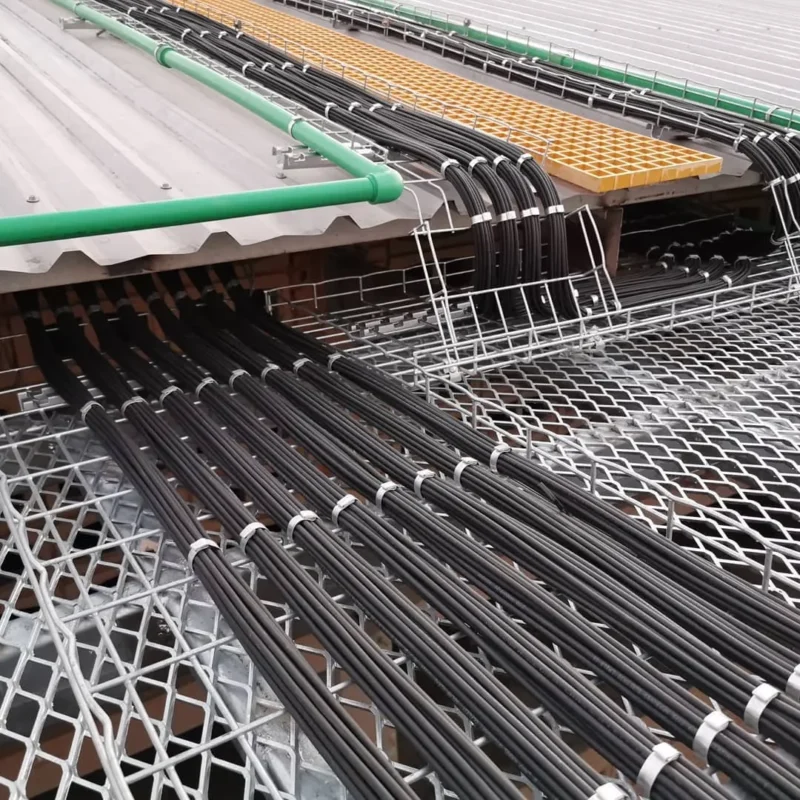

Flexible Routing & Easy Installation
- No complex elbows required
- Rapid deployment
- Comprehensive accessories
- Lower labor costs
Heavy-Duty Strength & Long Durability
- High-strength steel wire
- Precision welded joints
- Premium finish options
- Long-lasting performance
Technical Specifications
| Feature / Property | Specification Details |
| Material |
* Carbon Steel: Q235B / Q195
* Stainless Steel: SS304 (AISI304), SS316 (AISI316), SS316L |
| Surface Finish |
* Electro-Galvanized (EZ): For indoor use (ISO 2081), coating thickness ≥12μm
* Hot-Dip Galvanized (HDG): For outdoor/corrosive environments (ISO 1461), coating thickness ≥60μm
* Powder Coated (PC): Customized RAL colors, coating thickness ≥60μm
* Pickling & Passivation: For Stainless Steel options |
| Wire Diameter | 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm (Customizable) |
| Width Range | 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm, 600mm |
| Depth / Height | 35mm, 50mm, 75mm, 100mm, 150mm |
| Standard Length | 3000mm (Approx. 10 feet) |
| Mesh Grid Size | 50mm x 100mm (Standard) |
| Compliance & Standards | CE, UL/cUL, IEC 61537, NEMA VE1 |
| Safe Working Load | Varies by size and support span (Detailed loading chart available upon request) |
| Welding Strength Test | Mesh welding points can withstand a tensile force > 5000 N |
Frequently Asked Questions
Q1.What are your thoughts on using a cable tray for industrial wiring ?
A1. A well-designed cable tray system with proper separation of power and control wires makes cable management and future expansions an absolute breeze. Compared to traditional electrical conduit bending, installing trays is significantly faster, more flexible, and highly cost-effective for long-term maintenance.
Q2. What is the difference between a wire mesh cable tray and a standard cable tray?
A2.While standard cable trays use solid or ladder-type structures for heavy-duty power cables, a wire mesh cable tray features a lightweight, open-grid design that provides superior ventilation and easy routing for high-density data and network cabling.
Q3. When should I use a wire mesh cable tray versus a standard cable tray?
A3. Choose a wire mesh cable tray for lightweight routing, such as data networks and telecommunication cables, where maximum ventilation and flexible, on-site installation are required. Opt for a heavy-duty solid or perforated cable tray when supporting high-voltage power cables that demand robust protection, superior load capacity, and enhanced electromagnetic shielding.
Q4. What is the cost difference between a wire mesh cable tray and a traditional cable tray?
A4. Generally, wire mesh cable trays cost 10% to 30% less than traditional solid-bottom or ladder cable trays. This price advantage is driven by their lightweight design, which reduces raw material consumption and significantly lowers shipping and installation expenses.
Q5. What is the main installation difference between a wire mesh cable tray and a standard cable tray?
A5. While standard solid-bottom or ladder cable trays require heavy tools and prefabricated fittings for routing, a flexible wire mesh cable tray allows for fast, on-site cutting and bending, significantly reducing your cable tray installation time and labor costs.
