Agrivoltaic PV Mounting System
Configure an Agri-PV structure around the farming operation first: crop or livestock use, machinery envelope, row geometry, working clearance, light requirements, terrain, foundations and structural design criteria.
- Machinery Access
- Working Clearance
- Crop-Light Coordination
- Foundation Review
- Farm Operations First
Agrivoltaic Design Adds an Agricultural Operating Layer
Conventional ground-mount design already has to solve module support, structural loads, terrain and foundations. Agrivoltaic projects add crop or livestock activity, machinery movement, irrigation, working zones and light distribution as design constraints.
- Keep agricultural production and access as explicit project requirements.
- Do not apply one universal minimum clearance or row spacing to every market or crop.
- Define elevated fixed-tilt and tracking concepts separately; their operating envelopes and structural behavior are different.
- Check local agrivoltaic qualification, permitting or incentive criteria before locking the layout.
Design Clearance, Row Pitch and Turning Space Together
The limiting machine is not always the tallest one. Working width, implements, buffer space and headland turning can control the layout.
Machine Height & Width
Use actual tractors, harvesters, sprayers and attached implements rather than a generic “tractor clearance” assumption.
Row Pitch & Buffer Zone
Allow workable width between posts or arrays plus a practical safety margin for normal field operations.
Headland & Turning
Keep enough space for machines to turn, align and enter crop rows without repeated conflict with posts or braces.
Crop Light & Irrigation
Coordinate module height, tilt, row geometry and irrigation routes with agronomic light and water requirements.
Use the Agricultural Operation to Set the Layout
Crop fields, orchards and grazing areas create different support spacing, clearance and protection requirements.

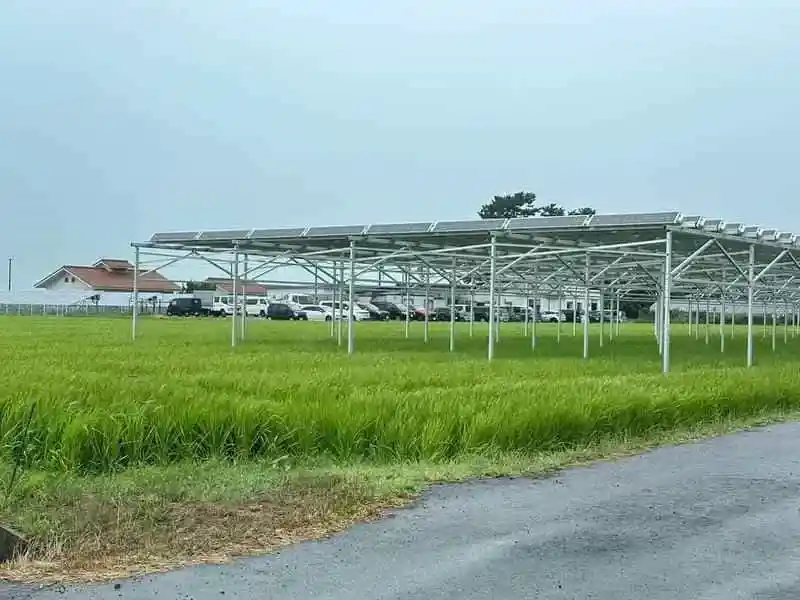

Field Crops
Coordinate posts and rows with planting, spraying, cultivation, harvesting, irrigation and the full machinery cycle.

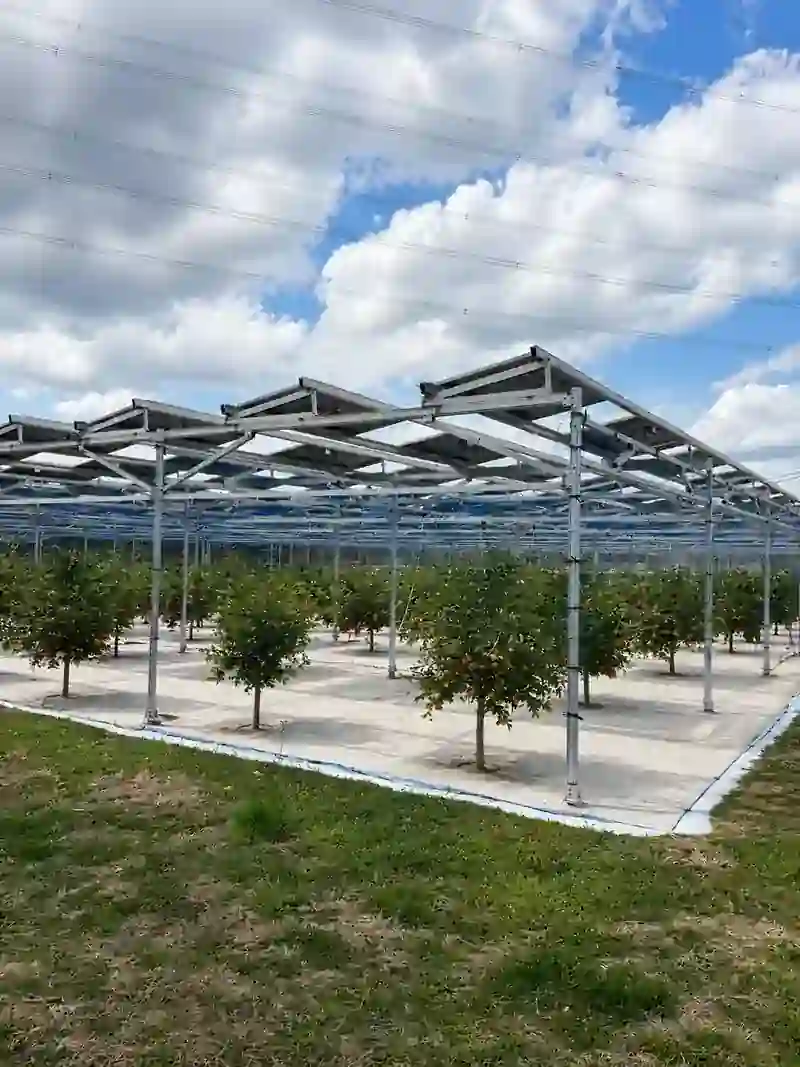

Orchards & Vineyards
Match the structure to existing row spacing, canopy growth, pruning, spraying, harvesting and any hail-net or irrigation infrastructure.

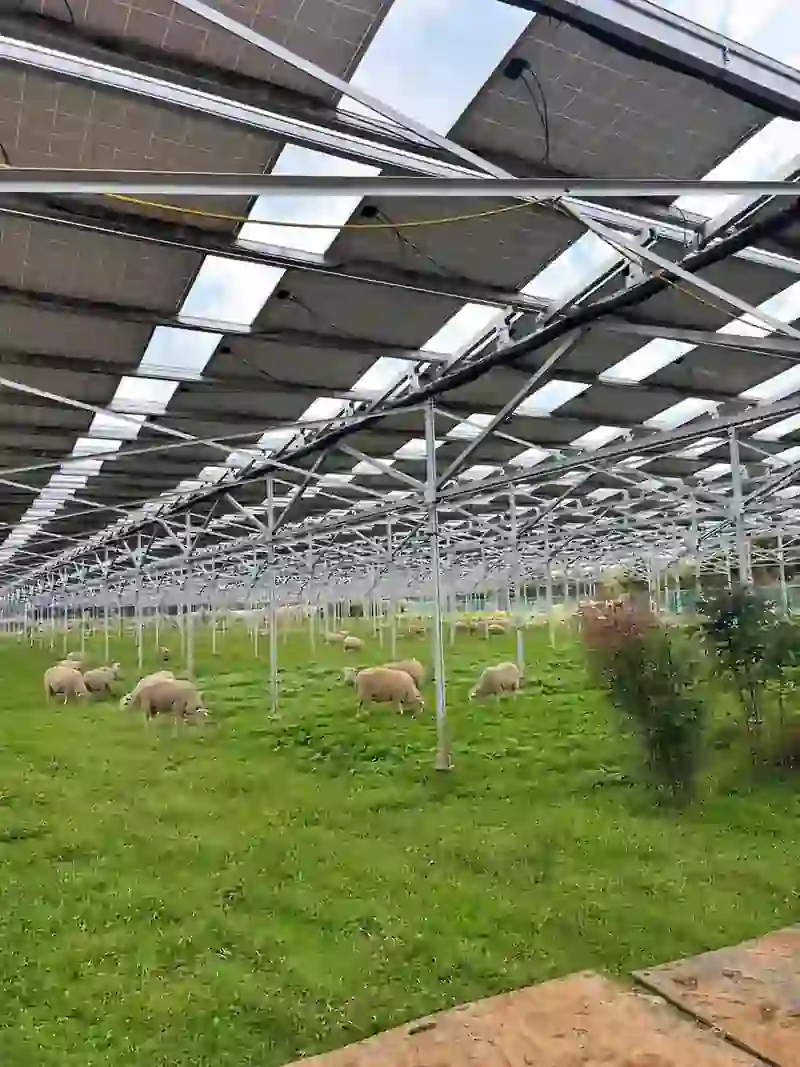

Pasture & Livestock
Review animal movement, access gates, equipment protection, cable height and maintenance zones in addition to the structural layout.

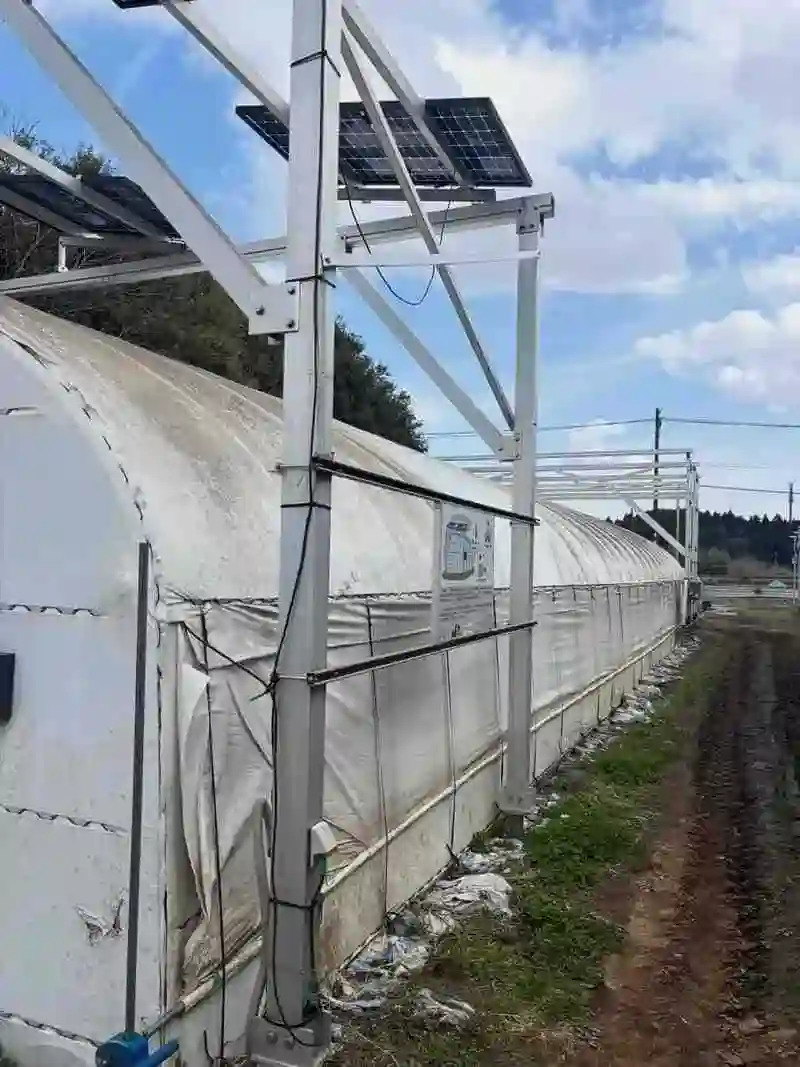

Height, Span and Foundation Form One Structural System
Taller posts and wider working spans can increase structural demand. The frame and foundation therefore need to be reviewed together with wind, snow, seismic, soil, corrosion and terrain conditions.
- Posts and columns establish the agricultural working clearance.
- Beams, purlins and bracing transfer module and environmental loads between supports.
- Ground screws, driven piles or concrete foundations are possible only where the site and structural design support them.
- Use geotechnical information and field testing where the selected foundation method requires it.
- Keep foundations, braces and cable routes out of critical machinery and cultivation zones where practical.
Information to Confirm Before the Structure Is Released
Keep agricultural, PV, structural and site information in one project brief instead of repeating the same inputs across multiple sections.
| Agricultural use | Crop rotation or orchard/vineyard layout, livestock use, irrigation and required field operations. |
|---|---|
| Machinery envelope | Machine and implement height, working width, turning radius/headland need and preferred travel routes. |
| PV configuration | Module model/dimensions, orientation, fixed-tilt or other approved architecture, preliminary layout and target capacity. |
| Light objective | Crop-light or shading requirement supplied by the agronomic/project design; avoid a generic shade percentage. |
| Site & structure | Terrain, drainage, project location, governing standard and applicable wind, snow, seismic or other design criteria. |
| Soil & foundation | Geotechnical data, groundwater/corrosion conditions and field-test information required by the selected foundation. |
| Project outputs | Required drawings, calculations, BOM, installation documents and agreed supply boundaries. |
Build the Order from the Approved Drawings and BOM
Structural members, module-support parts and connection hardware should follow the released project configuration.
Structural Components
Posts, beams, purlins, braces and connections are matched to the approved structure.
Drawing Control
Dimensions, holes and interfaces should follow released drawings rather than generic category dimensions.
Delivery Sets
Long members and small hardware can be grouped against the confirmed BOM and project delivery plan.
Send the Farm Operation and Site Information
Start with the farming scenario, machinery dimensions, module data and available site/geotechnical information. The structure and foundation can then be reviewed as one agricultural and structural system.
- Crop / orchard / livestock operation
- Machine and implement dimensions
- Module datasheet and preliminary layout
- Terrain, drainage and site design criteria
- Soil / foundation information if available
Agri-PV Project Questions
Is there one standard clearance height for agrivoltaic projects?
No. Clearance depends on the system architecture, machinery, crop operation and local qualification or permitting requirements. Use the actual operating envelope and applicable project rules.
How should row spacing be determined?
Row pitch should account for crop rows, machine working width, safety buffers, turning/headland needs, irrigation and the PV/light objective. A single generic spacing is not suitable for every farm.
What should I send for an Agri-PV quotation?
Send the agricultural operation, machinery dimensions, module data/layout, terrain and structural design inputs, plus geotechnical or foundation information where available.
