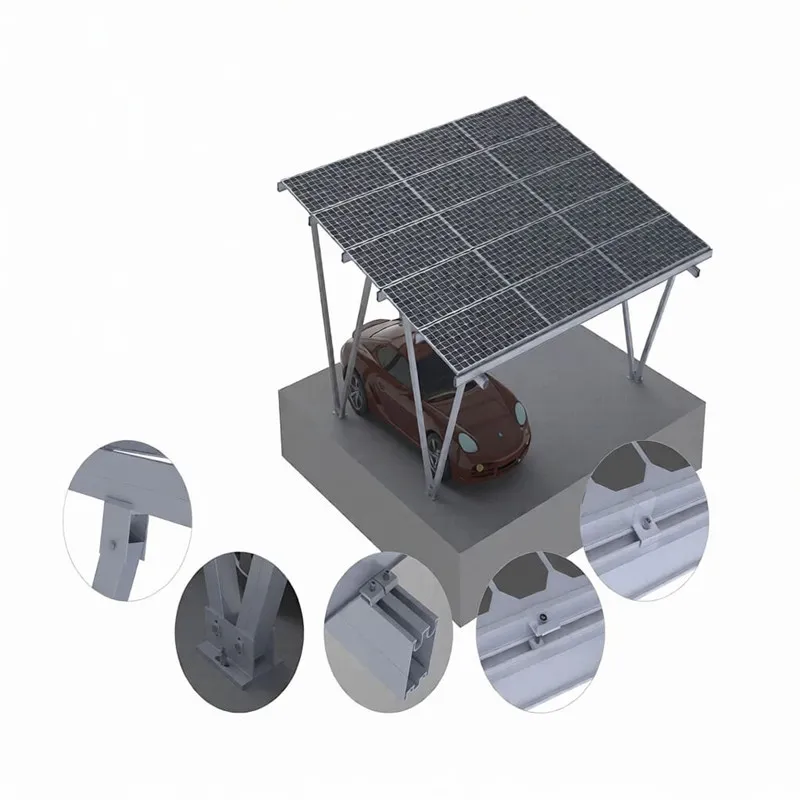

Solar Carport Mounting System
Select a solar carport from the parking layout, vehicle clearance, column locations, module geometry, structural loads and site/foundation conditions. Drainage and electrical interfaces should then be coordinated with the selected canopy system.
- Parking Geometry
- Vehicle Clearance
- Column Location
- Foundation Coordination
- Drainage / EV Interfaces
Choose the Page That Matches the Main Project Requirement
The parent page should help narrow the carport type without duplicating the detailed child pages.

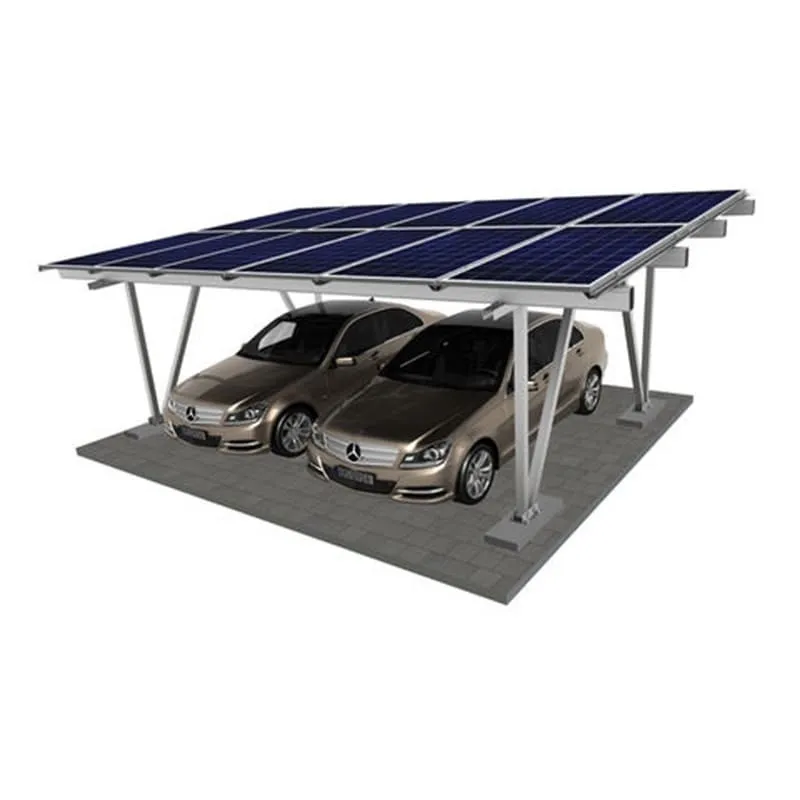

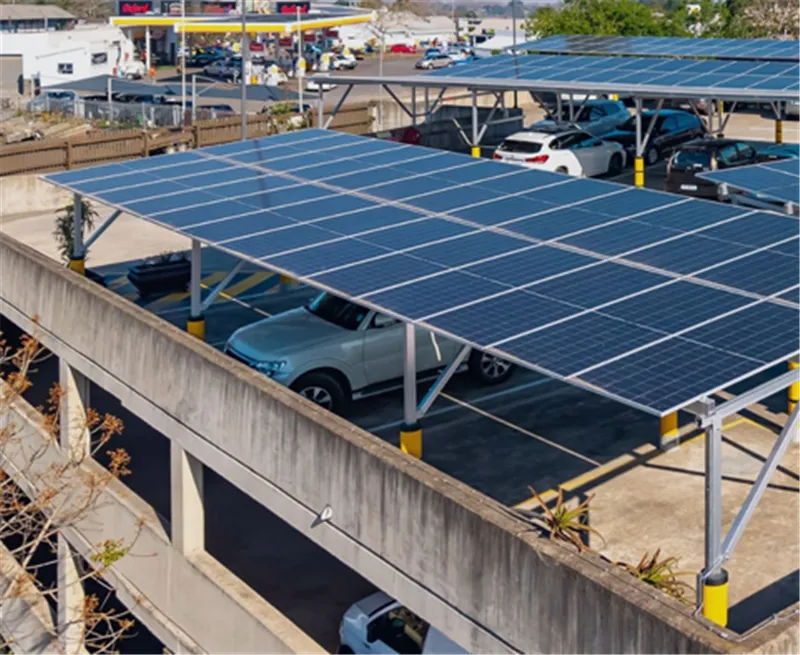

Commercial Solar Carport

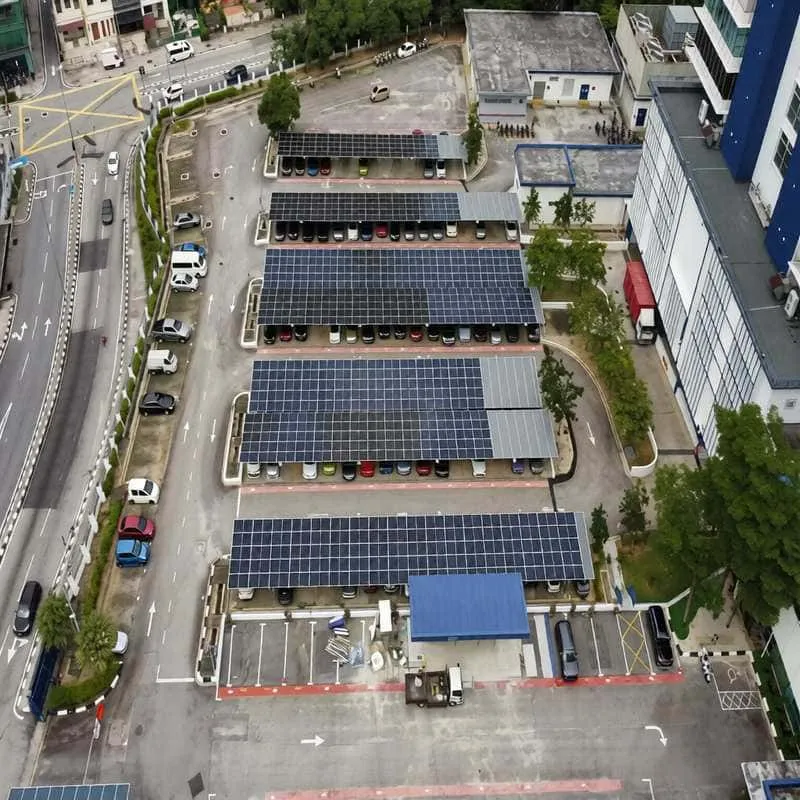

For parking lots and larger sites where circulation, structural span, foundations and project interfaces need commercial-scale coordination.
View Commercial Carport →

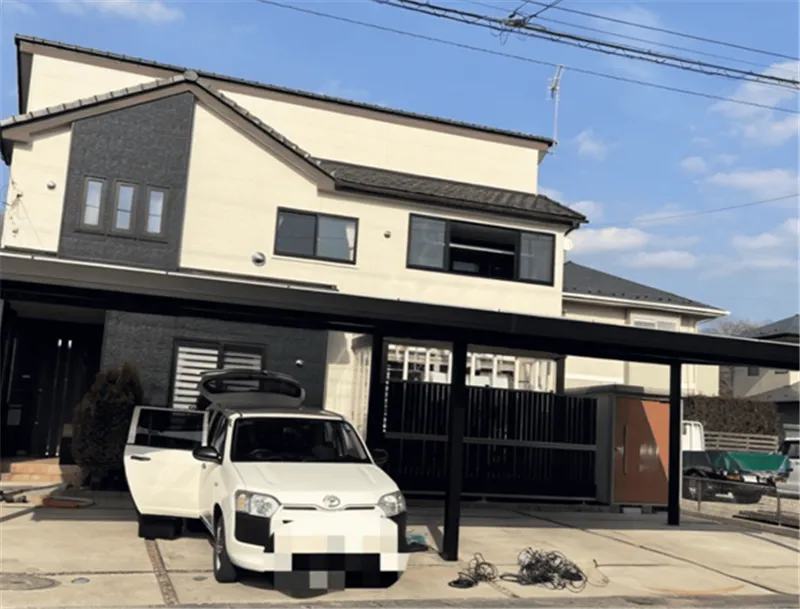

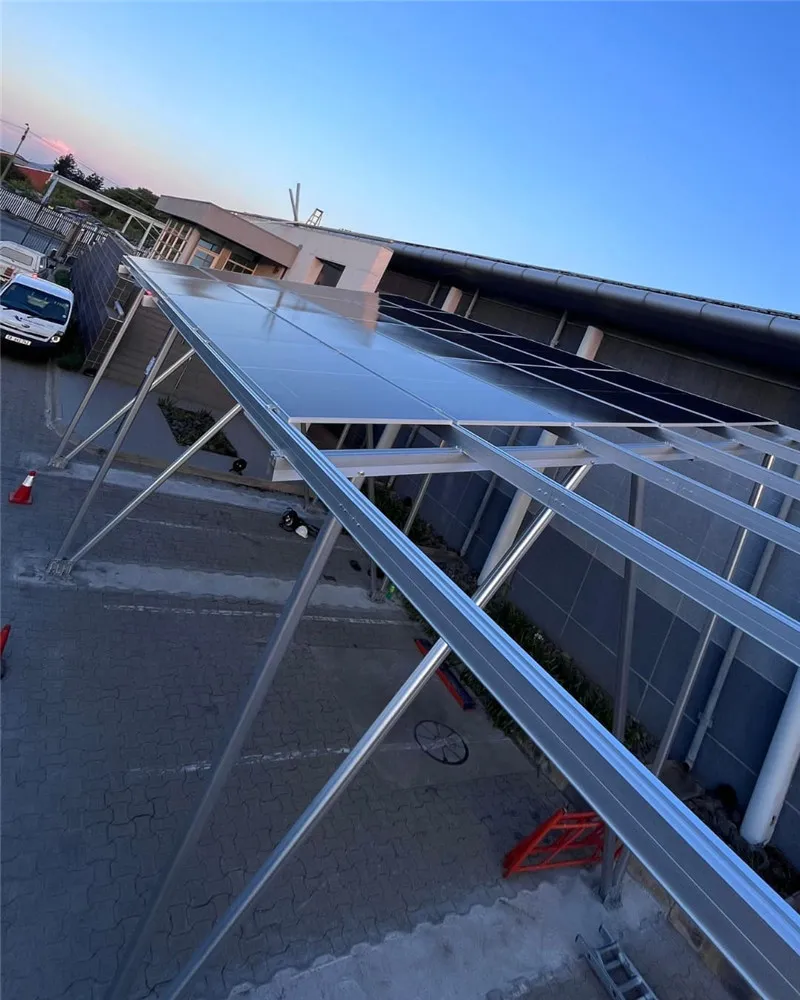

Residential Solar Carport
For one- or multi-bay home parking where footprint, vehicle clearance, foundations and module layout must fit the property.
View Residential Carport →

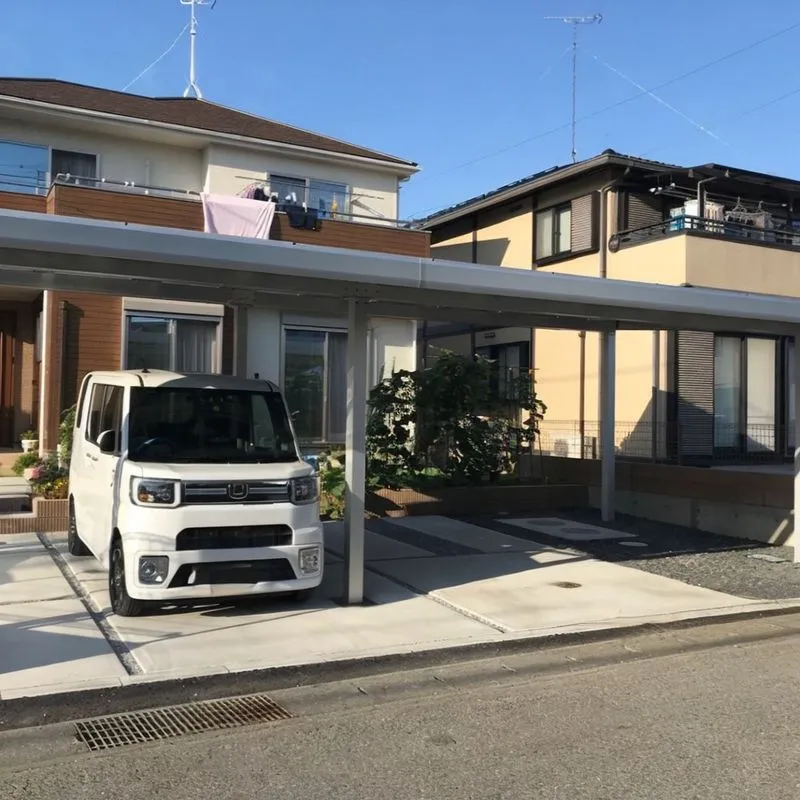

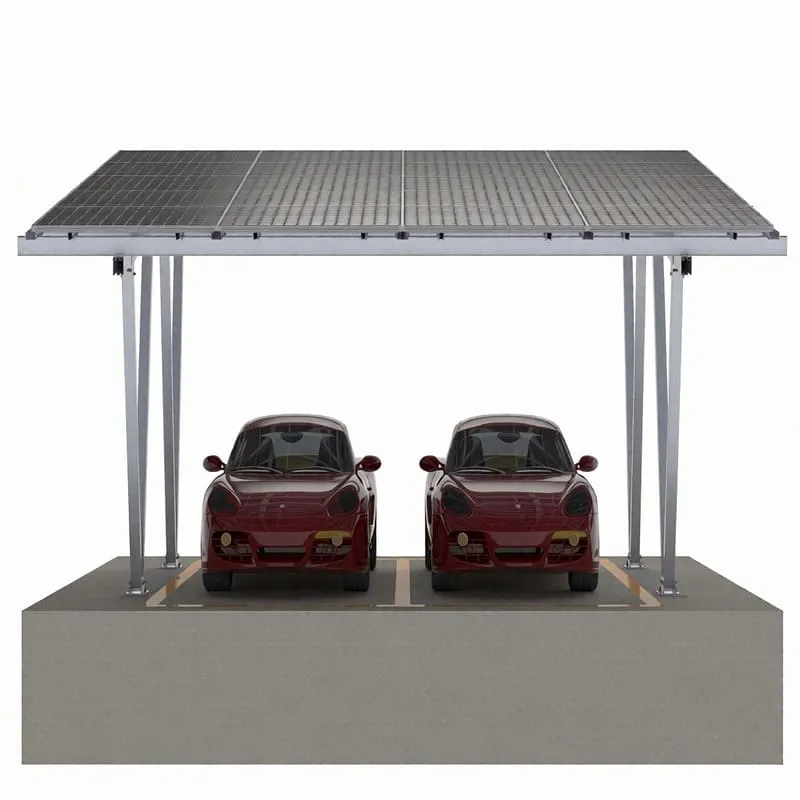

Water-Managed Solar Carport
For projects that require a documented module-gap collection, gutter or water-guide system and a defined discharge path.
View Water-Managed Carport →Choose the Support Layout Around the Parking Plan
Current carport systems use different single-row, double-row and cantilever arrangements to keep the parking area usable.
Single-Row
For one parking row where the support line and canopy edge can be coordinated with the site boundary.
Double-Row
For opposing parking rows where the shared support geometry fits the bay and drive-aisle arrangement.
Cantilever
Can keep columns away from vehicle doors or circulation zones, but changes the structural and foundation demand.
Site-Specific
Use where accessible bays, islands, utilities, lighting, fire access or irregular boundaries constrain a repeating layout.
Confirm Four Input Groups Before the Carport Is Finalized
Parking & Access
Bay dimensions, drive aisles, headroom, accessible routes, vehicle doors, pedestrian paths and column restrictions.
PV Layout
Module model, dimensions, orientation, preliminary array, tilt and the module-to-canopy support interface.

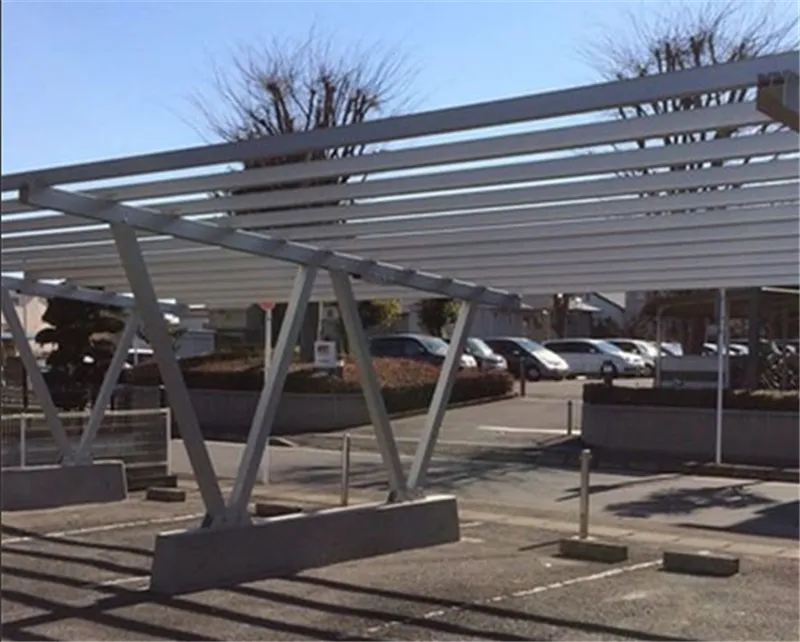

Structure & Foundation
Column grid, span, design actions, soil/slab information, foundation reactions, underground services and construction access.
Drainage & Electrical
Rain-protection requirement, gutters/outlets, cable routes, inverter locations, lighting and EV-charger interfaces where required.
Keep the Main Interfaces Clear Without Duplicating the Child Pages
The canopy frame, foundations, drainage and electrical systems occupy the same parking area. They should be coordinated early, but detailed waterproof, residential and commercial requirements belong on their dedicated pages.
- Keep columns and foundations clear of vehicle movement, accessible routes and known underground services.
- Check span, deflection, headroom and applicable structural design actions for the selected geometry.
- Do not call the canopy waterproof unless the supplied system includes a documented water-management detail.
- Coordinate gutters, downpipes, cable routes and EV equipment so one system does not obstruct another.
- Maintain practical access for inspection and maintenance.
Send the Parking Plan and Module Data
Start with the site/parking geometry and module datasheet, then add the required clear height, structural criteria, foundation/site information and any drainage or EV interfaces.
- Parking/site plan and bay quantity
- PV module datasheet and preliminary layout
- Required clear height and column restrictions
- Project location and structural design criteria
- Foundation/site information
- Rainwater and EV/electrical scope if applicable
Solar Carport Selection Questions
How do I choose between single-row, double-row and cantilever layouts?
Start with the parking plan, circulation and column restrictions, then compare structural span, foundation demand and construction access for the selected system.
Is every PV carport canopy waterproof?
No. Rain protection requires a documented water-management detail such as a compatible gutter, water-guide or secondary-roof system.

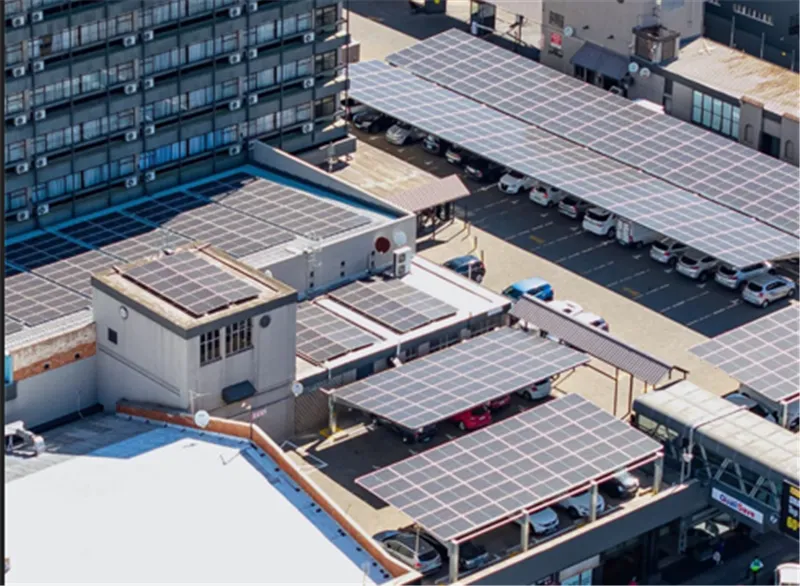

Can a solar carport be coordinated with EV chargers?
Yes. Charger locations, cable routes and electrical equipment can be coordinated with the canopy, but the electrical system remains a separate project scope.
