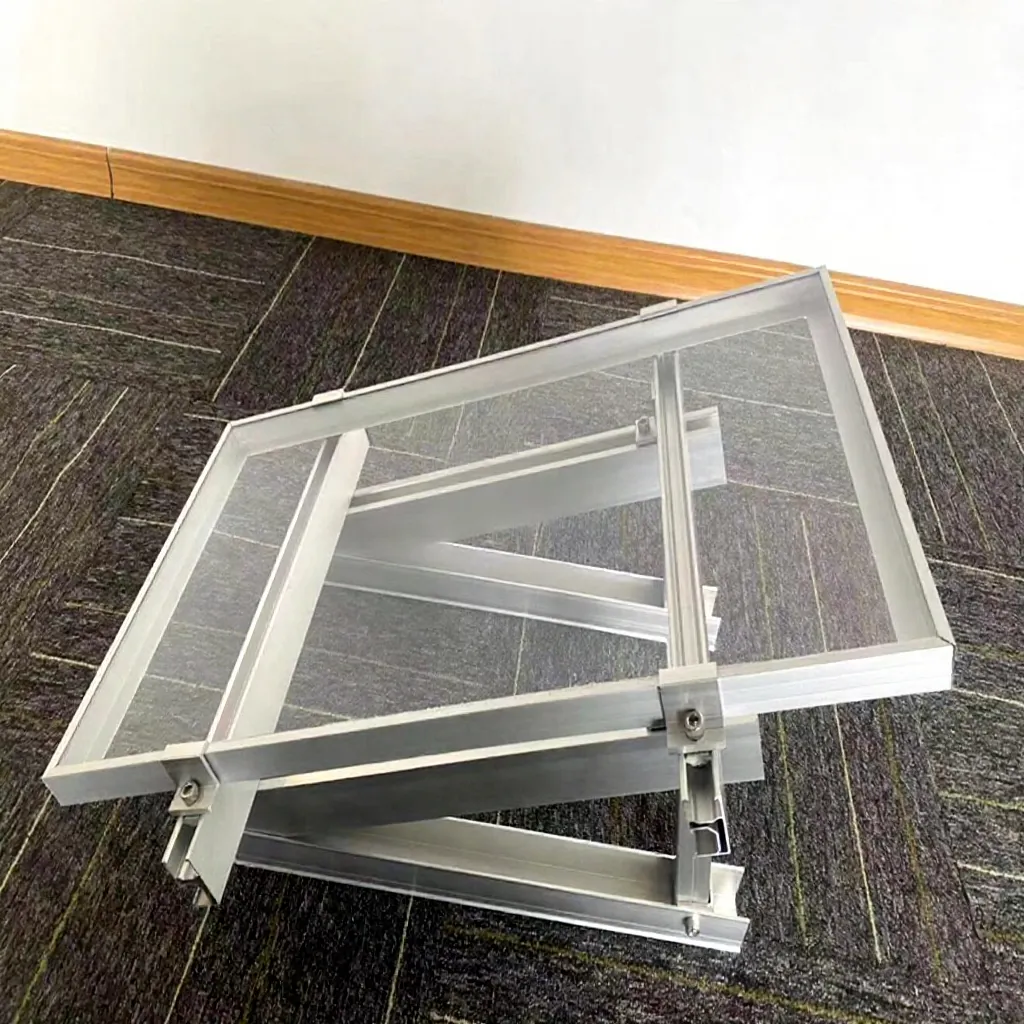

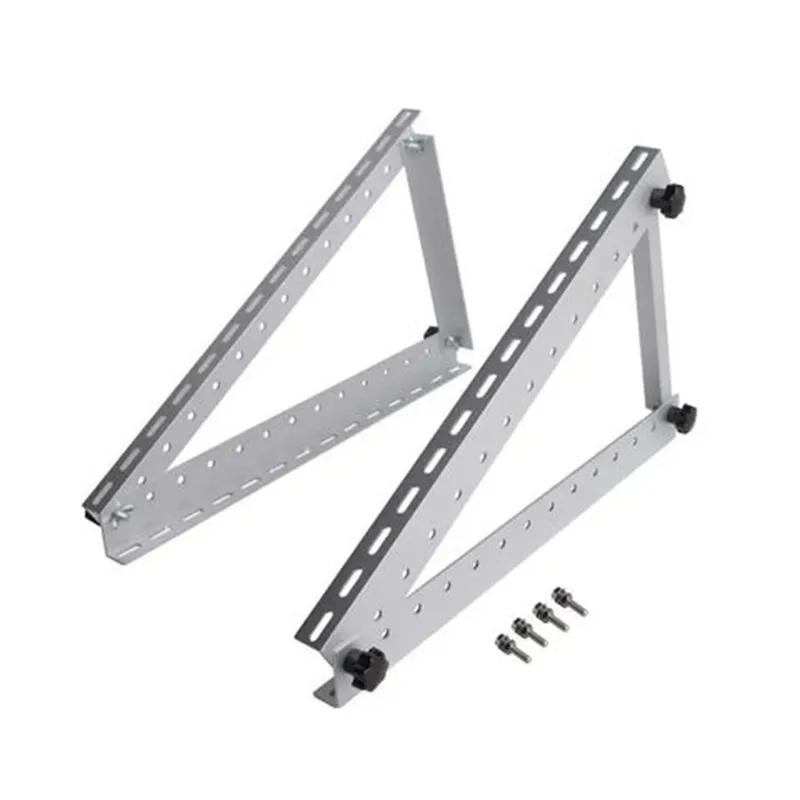

Trangle Solar Roof Mounting System

The Easy Solar® Triangle Solar Flat Roof Mounting Systems is a robust and flexible roof mounted pv system designed for flat roofs and low-slope rooftop photovoltaic installations. It is a typical flat roof solar panel mounting system. Featuring a durable triangular support structure, the solar panel roof mounting system allows solar panels to achieve the optimal tilt angle for improved energy generation. The roof rack mounting system for flat roofs provide excellent structural stability, fast installation, and long-term outdoor durability for solar projects.

Material: AL6005-T5 & SUS304
Roof Type: Flat Roof / Low-Slope Roof/Ground Mounting

Key Features & Benefits

Optimized Triangle Tilt Design

Optimized tilt angle for higher efficiency
Stable triangular support structure
Suitable for flat roof applications
Improved system performance

Compatible with Solar Panels

Suitable for framed solar panels
Compatible with frameless solar panels
Flexible module arrangement
Supports landscape and portrait installation

Durable Construction

Excellent corrosion resistance
Strong wind and snow load performance
Lightweight yet durable structure
Long service life with low maintenance

Technical Specifications

Item	Specification
Material	Anodized AL6005-T5 &SUS304
Compatible Modules	Framed & Frameless Solar Panels
Wind Speed	60m/s
Snow load	2KN/m²
Tilt Angle	0°~60°
Design Standard	AS/NZS 1170 / JIS C8955:2017 / EN 1991-1-3 / EN 1991-1-4 / NSCP 2015
Color	Silver / Black （Optional）
Warranty	12 Years
Service Life	25 Years

Technical Downloads

Frequently Asked Questions

Q1. Why are triangle solar mounting brackets ideal for flat roofs?

A1. Triangle Solar Mounting Brackets provide the optimal tilt angle for solar panels on flat roofs, helping improve sunlight exposure, increase power generation efficiency, and ensure stable system performance.

Q2. What is the optimal solar angle for solar flat roof mounts?

A2. The optimal solar panel tilt angle usually depends on the project location and sun exposure. Triangle solar mounting brackets allow flexible tilt angles to maximize solar energy production on flat roofs.

Q3. How to Diy the solar triangle mount installation?

A3. DIY Triangle Solar Flat Roof Mounting Systems Installation is quick and easy for flat roof and metal roof solar projects. The adjustable solar triangle bracket features lightweight aluminum construction, fast assembly, and strong wind resistance. Designed for DIY solar panel mounting systems, it supports framed solar panels with secure and durable installation for residential and commercial rooftop solar applications.

Q4. What is the of cost for a solar triangle mount installation project?

A4. The installation cost of a Solar Triangle Mount System depends on roof type, project size, wind load requirements, and labor costs. In general, triangle solar mounting brackets for flat roofs offer a cost-effective and fast installation solution for commercial and residential solar projects. Their lightweight aluminum structure reduces transportation and labor expenses while ensuring durable and stable photovoltaic panel support.
