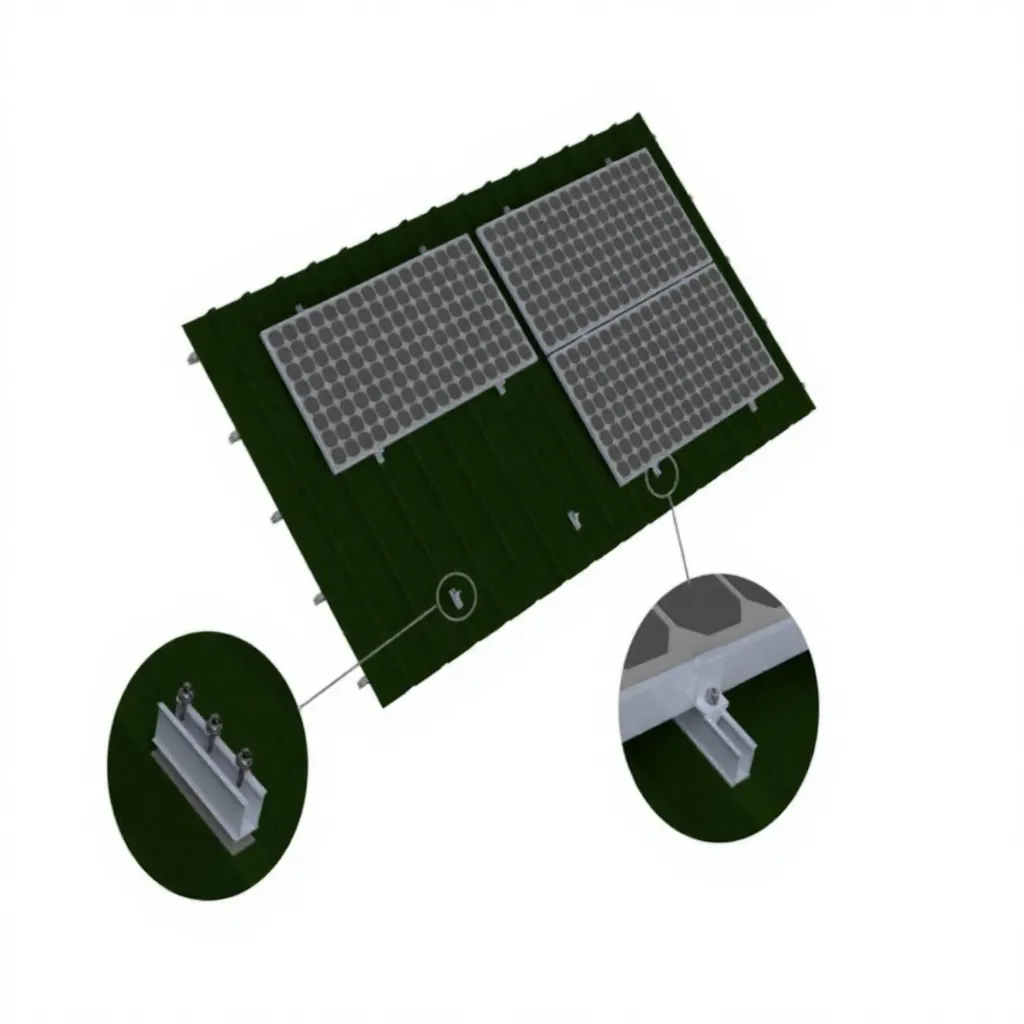

U-Shape Mini Rail Metal Roof Solar Mounts
The Easy Solar® U-Shape Mini Rail Mount is a durable and efficient solar mounting solution specially designed for metal rooftop photovoltaic installations. Featuring a reinforced U-shaped rail structure, U-Shape Mini Rail metal roof solar mounting systems offer enhanced strength, excellent waterproof performance, and quick installation. Its compact rail design reduces material costs while ensuring reliable support for solar modules in various weather conditions.
- Material: AL6005-T5 & SUS304
- Roof Type: Metal Roof / Trapezoidal Roof
Key Features & Benefits

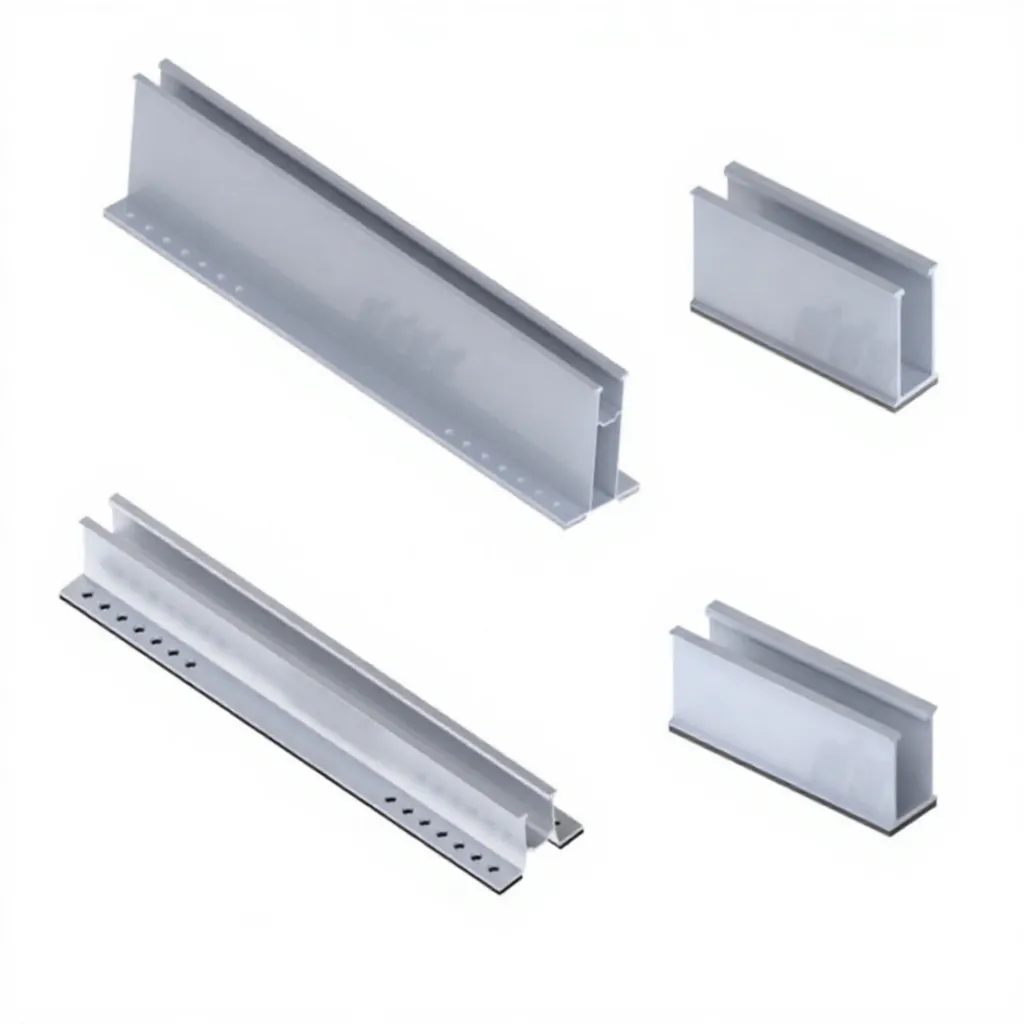

Reinforced U-Shape Structural Design
- Enhanced structural stability
- Strong load-bearing performance
- Reduced rail deformation
- Suitable for high wind and snow areas
Fast Installation & Lower Labor Cost
- Easy and fast solar PV panel installation
- Fewer installation components
- Reduced labor cost
- Compatible with common solar modules
Excellent Corrosion Resistance
- High corrosion resistance
- Ideal for coastal and humid environments
- Long-lasting performance
- Minimal maintenance required
Technical Specifications
| Item | Specification |
|---|---|
| Material | Anodized AL6005-T5 &SUS304 |
| Compatible Modules | Framed & Frameless Solar Panels |
| Wind Speed | 35m/s |
| Snow load | 2KN/m² |
| Tilt Angle | 0°~60° |
| Design Standard | AS/NZS 1170 / JIS C8955:2017 / EN 1991-1-3 / EN 1991-1-4 / NSCP 2015 |
| Color | Silver / Black （Optional） |
| Warranty | 12 Years |
| Service Life | 25 Years |
Frequently Asked Questions
Q1. What roof types are suitable for the U-shape mini rail system?
A1. The system is mainly designed for metal roofs, especially trapezoidal sheet metal roofs used in commercial and industrial solar projects.
Q2. What are the advantages of the U-shape rail design?
A2. The U-shape structure improves strength and stability while keeping the mounting system lightweight and cost-efficient.
Q3. Is the system waterproof?
A3. Yes. The system is designed with waterproof EPDM rubber pads and secure fastening solutions to help prevent water leakage.
Q4. Can the mounting system be customized?
A4. Yes. Easy Solar offers OEM and customized solutions based on different roof profiles and project requirements.
Q5. Is the installation process complicated?
A5. No. The system features a simple structure with pre-assembled parts, allowing for fast and easy installation.
