Solar Panel Mounting Rails
A solar rail should be selected as part of the complete mounting system. Confirm the rail section, support spacing, module clamp interface, attachment method, splice, bonding/grounding detail and project loads before choosing a profile or length.
- Profile Geometry
- Support Spacing
- Clamp Interface
- Attachment Compatibility
- Splice & Bonding
The Rail Is a Structural and Connection Interface
Mounting rails support and align PV modules while transferring module loads to the roof attachment, bracket, purlin or other supporting structure. The same profile also has to accept the selected clamps and, where used, compatible splice and bonding hardware.
- Profile capacity must suit the support spacing and project design actions.
- The top channel or clamp seat must match the module-clamp system.
- The lower or side interface must match the roof attachment or supporting structure.
- Splice, cantilever and bonding details should follow the selected rail system.
Choose the Rail by Structural Role and Connection Method
Current rail systems use different section heights, capacities and interfaces rather than one universal profile for every installation.

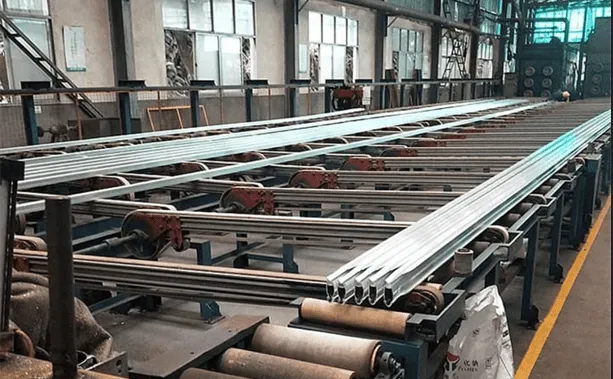

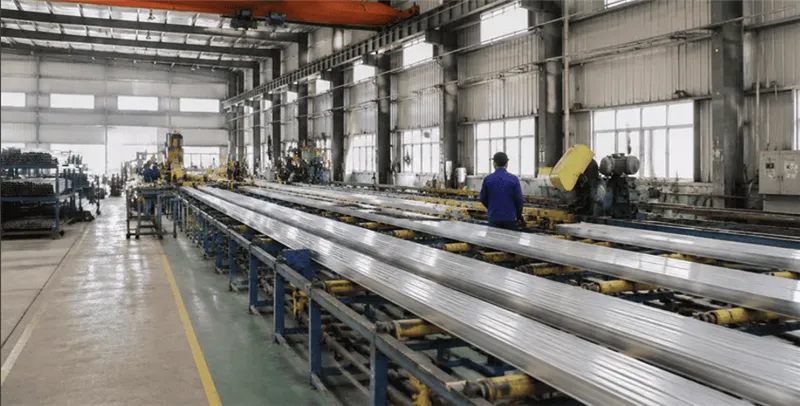

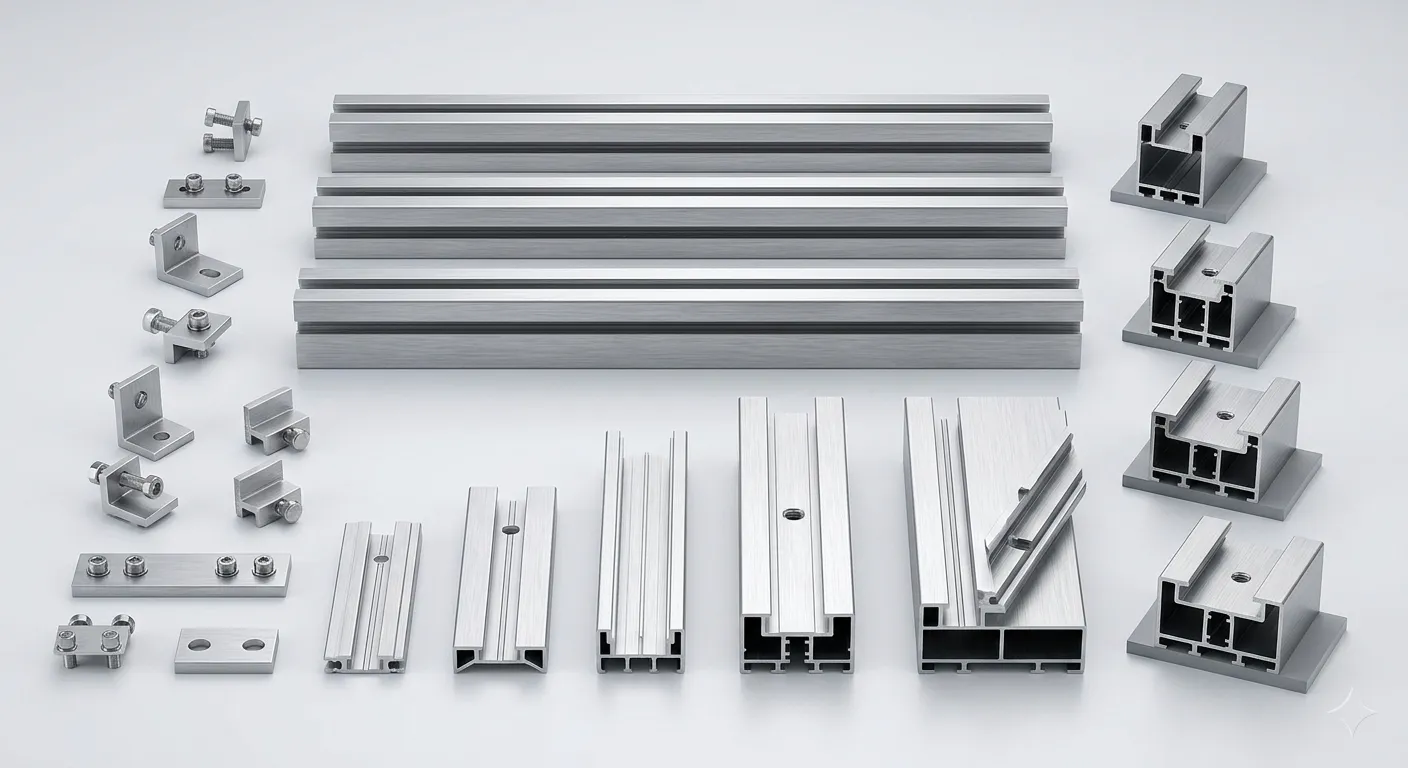

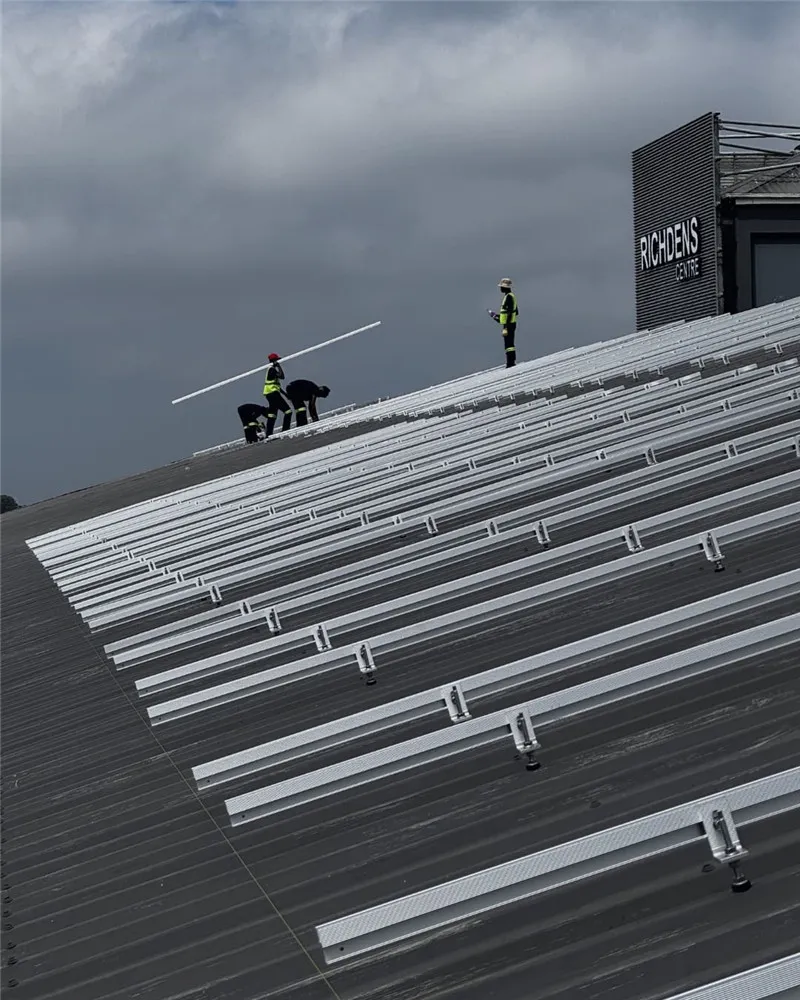

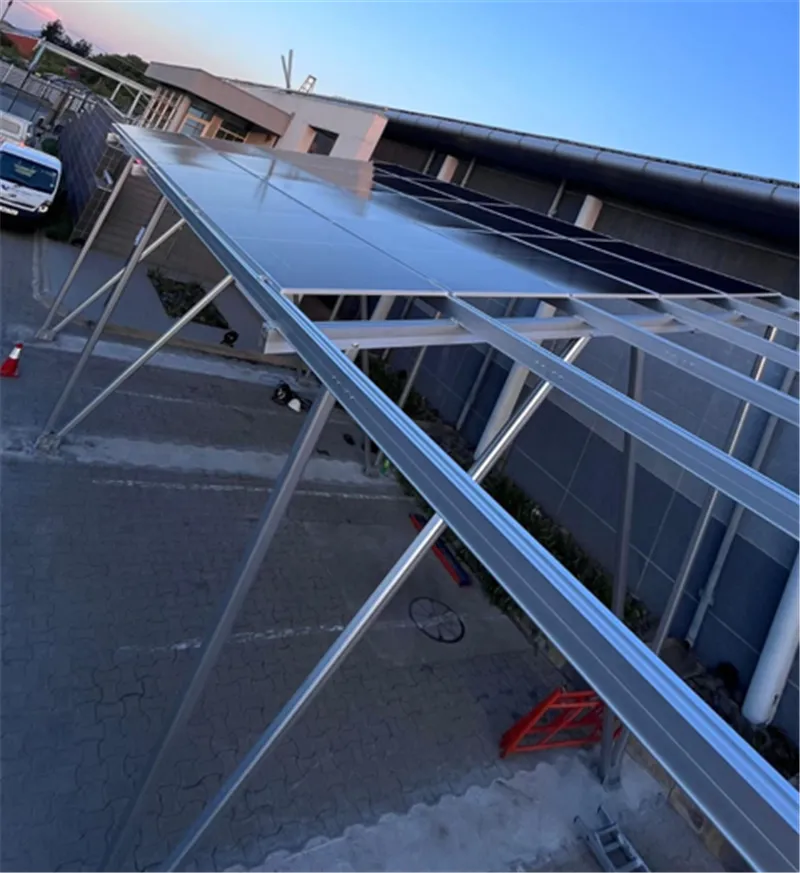

Standard Structural Rails
Continuous module-bearing rails for compatible roof or structural attachments. Section choice should follow span, loading and the complete system interface.

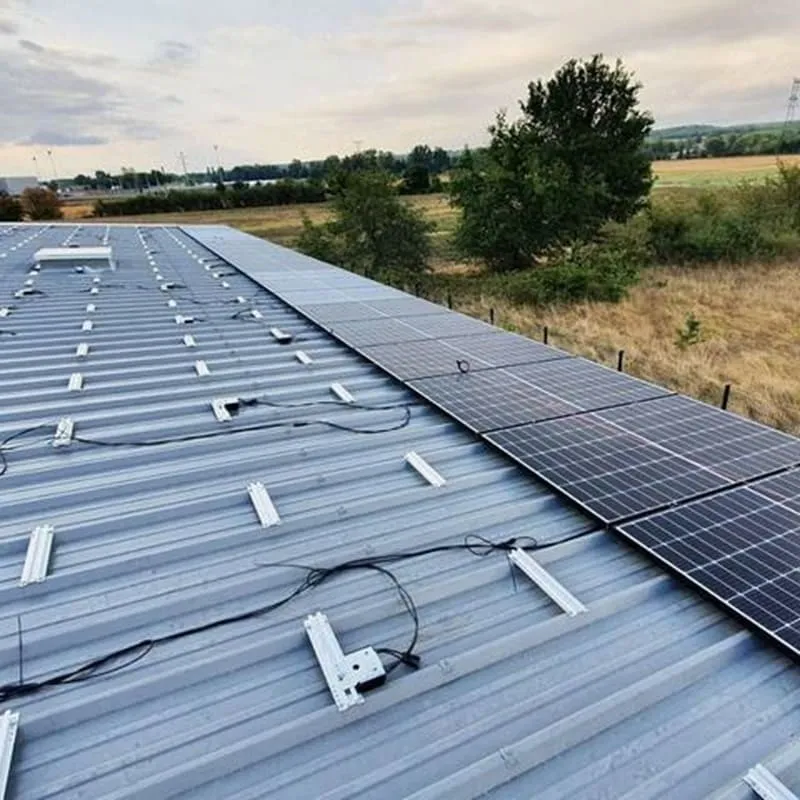

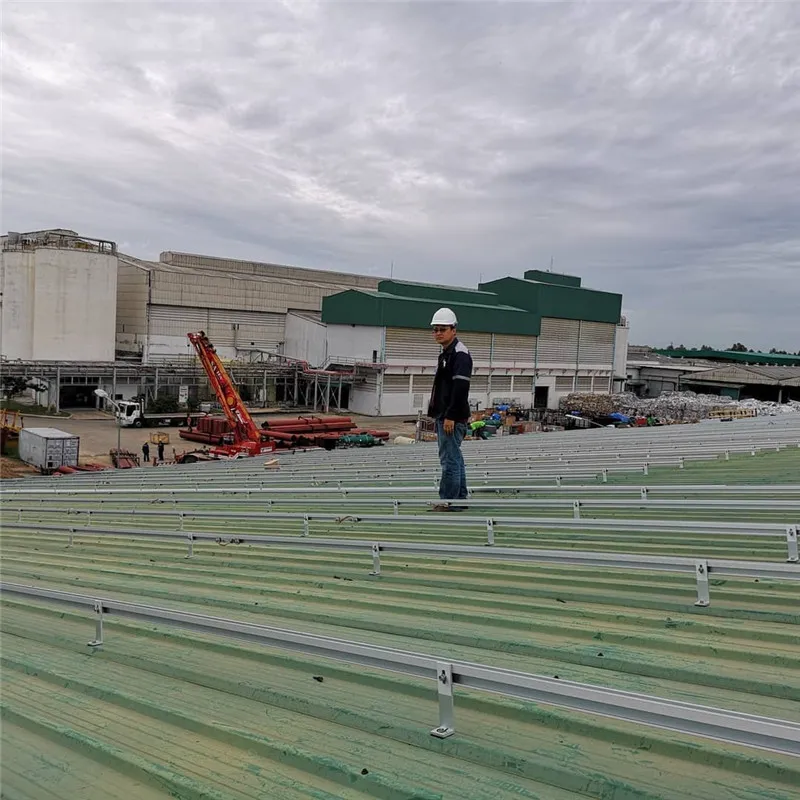

Metal-Roof Short Rails
Compact rails for specific sheet-metal roof systems. Roof profile, sheet/substructure load path, fasteners and sealing detail must match the approved short-rail design.

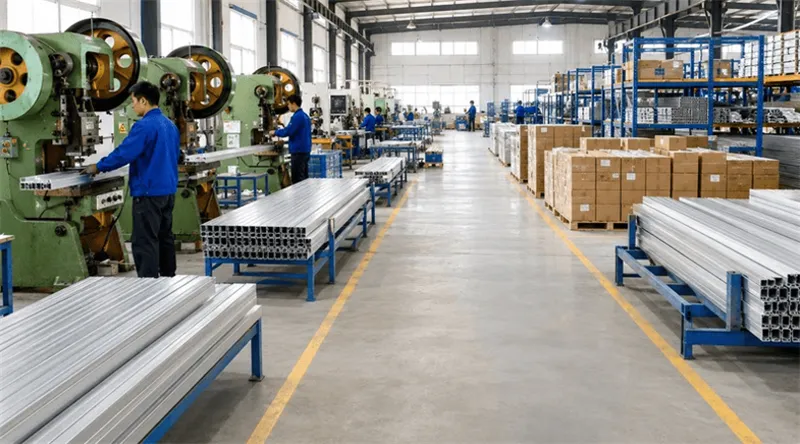

Deeper / Longer-Span Rails
A deeper section may be used where the verified system requires greater span or load capacity. Profile depth alone is not a substitute for structural calculation.

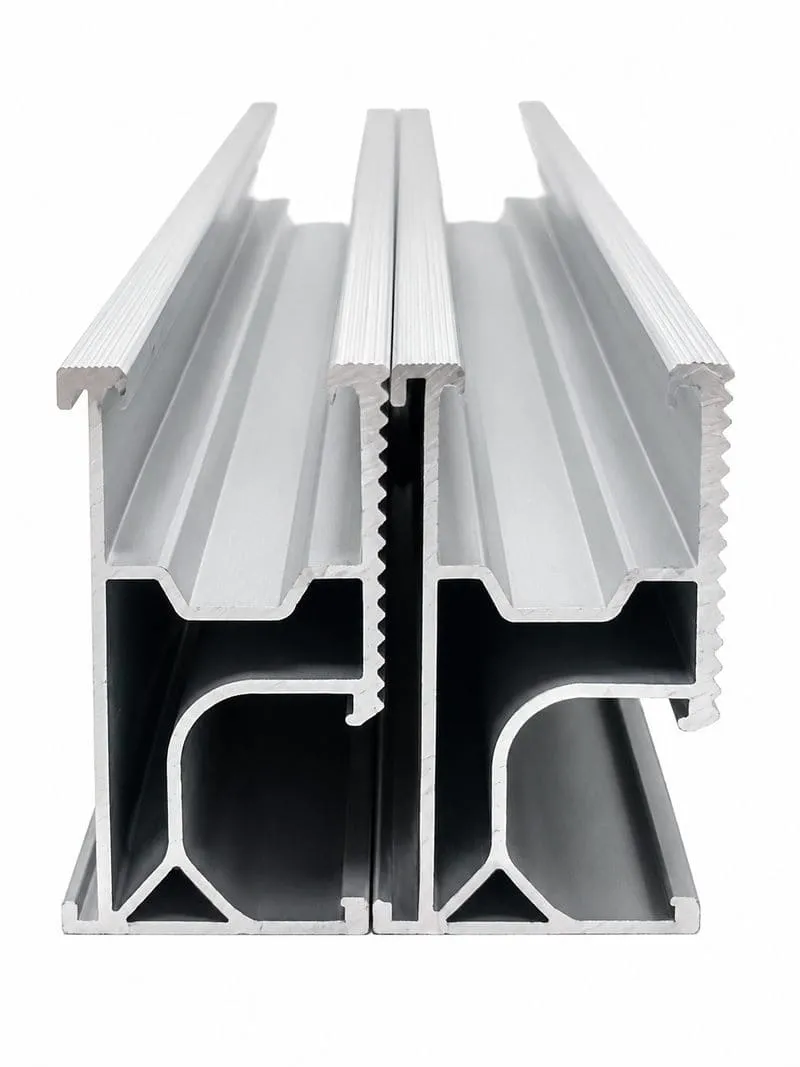

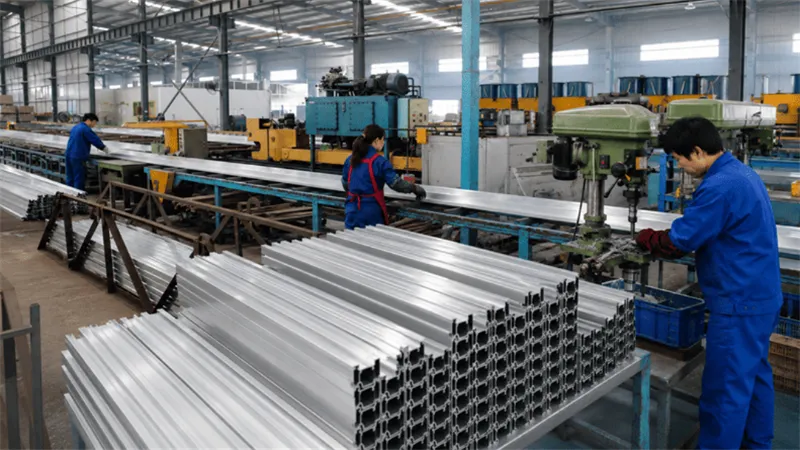

Confirm the Cross-Section Before Matching Hardware
Width, height and wall thickness matter, but the connection geometry is just as important. The clamp channel, bolt slot, attachment face and splice cavity determine which hardware can be used with the rail.
- Overall profile width and height
- Wall thickness and internal reinforcement
- Top channel / clamp-seat geometry
- Bottom or side slot and bolt interface
- Splice cavity or external splice interface
- Required cut length and end condition

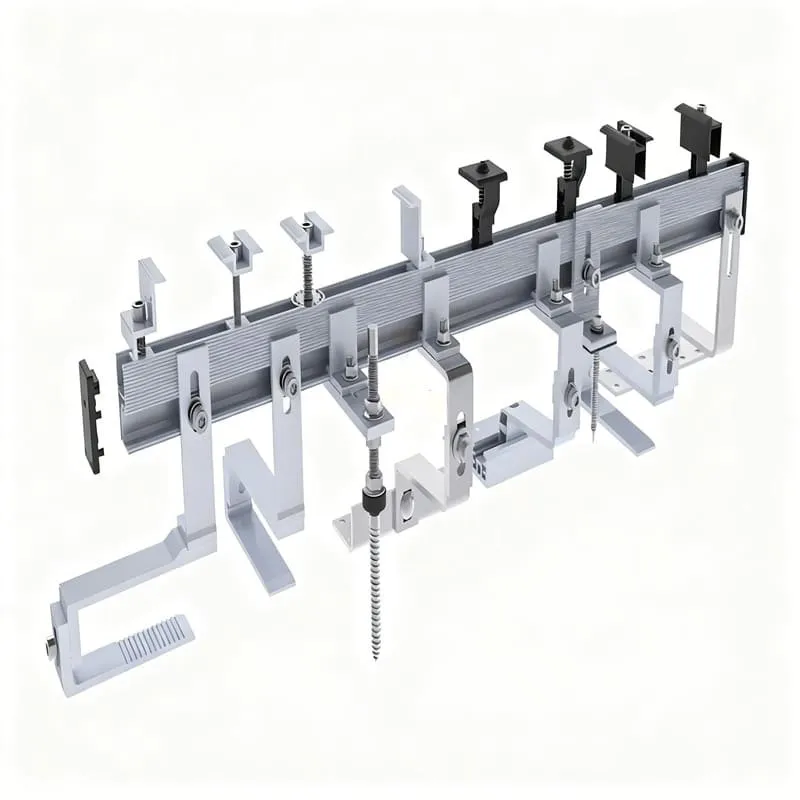

Verify the Hardware That Connects to the Rail
The rail is only one part of the load path. Each interface should be checked against the selected system documentation.
Module Clamps
Clamp base, bolt or click interface and module-frame range must match the rail channel.
View Solar Panel Clamps →Roof Attachments
Hooks, feet or brackets must connect to the rail using the approved slot, adapter or fastener arrangement.

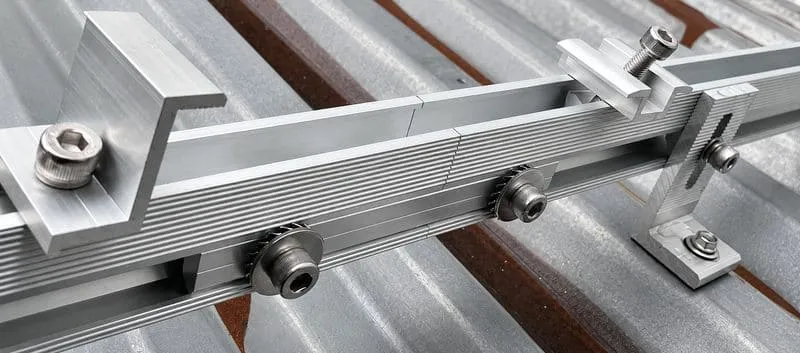

View Roof Hooks →Rail Splices
Internal or external splice geometry is rail-specific and should follow the system's structural and installation rules.
View Rail Splices →
Span, Cantilever and Splice Rules Come from the Rail System
Rail capacity depends on section properties, support spacing, load direction, module arrangement and the project's design actions. Published span tables or engineering calculations should be used for the actual rail, rather than assuming a deeper-looking profile can span farther.
- Support spacing and allowable rail span
- Rail cantilever beyond the outer support
- Splice location relative to supports
- Module orientation and clamp-zone requirements
- Wind, snow and other applicable project actions
Use the Actual Rail Drawing and Product Specification

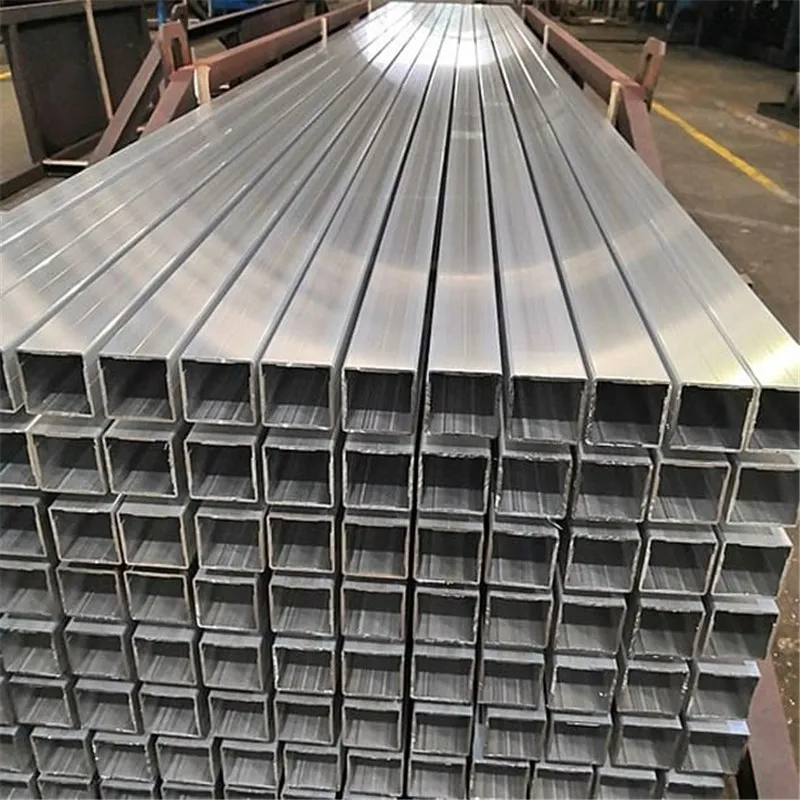

Aluminum is common in PV rail systems, but alloy, temper and finish should be confirmed for the selected profile rather than assumed across every rail.
| Profile | Part number or drawing with width, height, wall thickness, channels and connection geometry. |
|---|---|
| Material | Actual aluminum alloy/temper or other specified structural material for the selected rail. |
| Finish | Mill, clear/black anodized or another documented finish where offered by the selected product. |
| Length | Available production length or approved cut length, coordinated with transport, support and splice planning. |
| System interfaces | Compatible clamps, attachments, splices, bonding/grounding parts and fasteners. |
Information Needed to Review a Rail Profile
Mounting System
Roof, ground or carport structure plus the exact support or attachment that will carry the rail.
Module & Clamp
Module dimensions, frame thickness, orientation, clamp zones and selected clamp interface.
Rail Geometry
Existing rail drawing or required profile dimensions, support spacing, splice arrangement and cut length.
Design Basis
Project location and the structural loads or engineering criteria needed to verify the rail selection.
Send the Rail Drawing and System Details
Provide the rail cross-section or target interface together with the module, clamp, attachment, support spacing and structural design information needed for review.
- Rail cross-section drawing or sample reference
- Required length and support spacing
- Module and clamp information
- Attachment / supporting structure
- Splice and bonding requirements
- Project structural design criteria
Solar Mounting Rail Questions
Can one rail profile be used with any solar clamp or roof attachment?
No. Clamp channels, bolt slots, attachment adapters and splice geometry are system-specific. Compatibility should be verified from the selected rail and hardware documentation.
How is the correct rail size selected?
Use the actual support spacing, loads, module layout, cantilever and system span data or engineering calculation. Profile height by itself does not prove allowable span.
Are short rails suitable for every metal roof?
No. Short-rail systems are designed for specific metal-roof profiles and structural load paths. The roof sheet or substructure, fasteners and sealing detail must match the approved system.
What information is needed for a rail quotation?
Send the rail drawing or required interface, length, support spacing, module and clamp data, attachment method and the structural criteria needed for the project.
