Orchard Agrivoltaic Structure

Elevated PV Structures for Working Orchards

Orchard Agrivoltaic Structure

Orchard agrivoltaics should be designed around the mature tree canopy and the full orchard workflow. Define tree-row geometry, pruning and harvest access, sprayer or platform clearance, irrigation, module/light strategy, structural loads and site conditions before the elevated PV structure is finalized.

Request Orchard Project Review → Review Orchard Inputs
  • Mature Canopy Clearance
  • Orchard Machinery Access
  • Tree-Row Coordination
  • Light / Shade Strategy
  • Site-Specific Structure

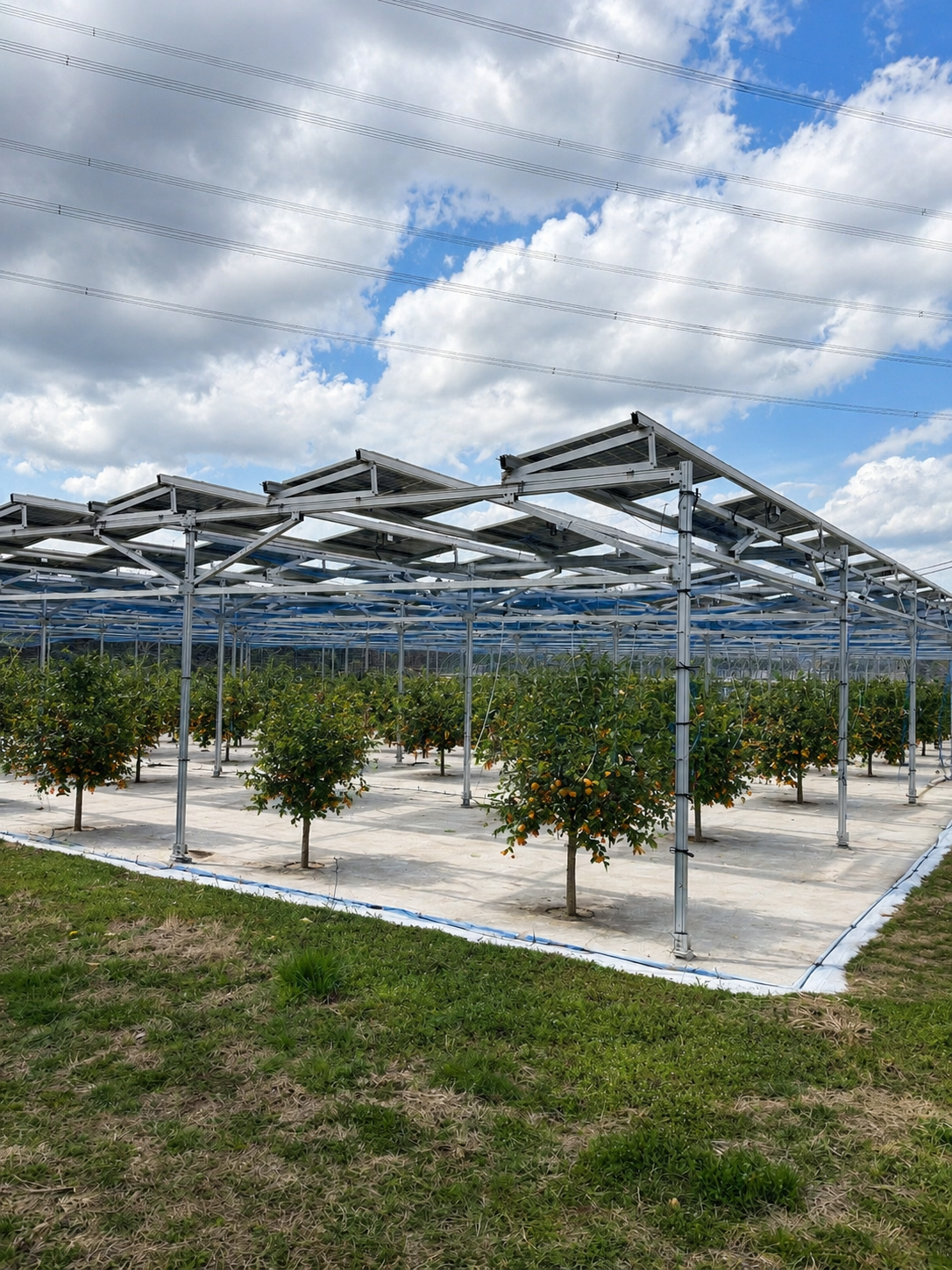

Elevated agrivoltaic structure above orchard tree rows
Orchard operation first Panel height and post position should preserve the pruning, spraying, harvest and access routes the orchard actually needs.

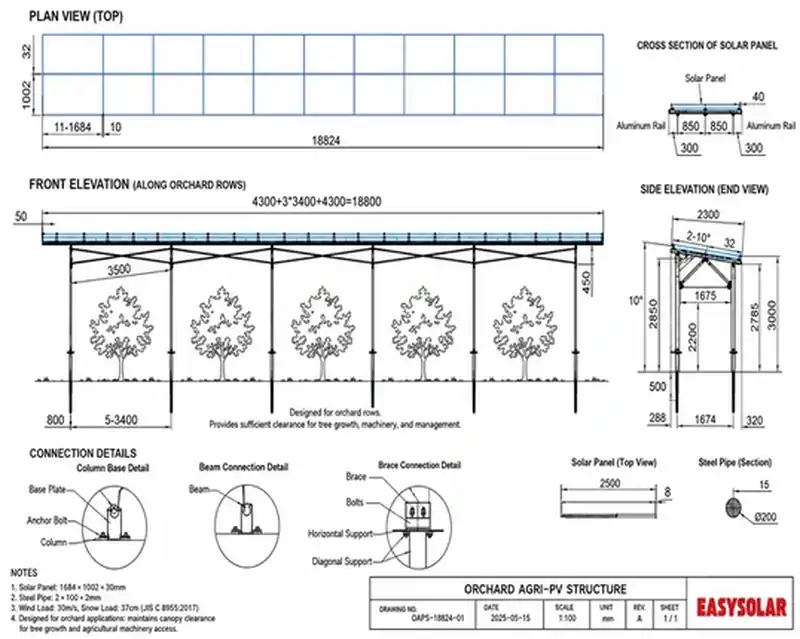

Orchard agrivoltaic layout showing elevated PV rows, tree canopy and operating clearance
Orchard structure logic Coordinate the PV structure with the orchard row, mature canopy and operating corridor instead of treating height as a standalone option.
System Scope

Orchard Agri-PV Is a Horticulture-and-PV Co-Design Problem

Elevated PV can share land with fruit production, but the mounting system changes the orchard's light, rain exposure, access and working envelope. The structure should therefore be developed from the orchard management plan together with the PV and structural design.

  • Use the mature canopy dimensions, not only the current young-tree height.
  • Keep pruning, spraying, thinning, harvest and maintenance routes workable.
  • Coordinate posts and foundations with tree rows, irrigation and orchard traffic.
  • Define the PV/light strategy before fixing array height, coverage and orientation.
Fixed and tracking orchard systems can create very different shade patterns and operating envelopes. Specifications should not be copied from one architecture to another.
Orchard Operating Envelope

Design Around the Work Performed Through the Life of the Orchard

The critical clearance is the space needed for mature trees, machinery and orchard operations—not one generic panel height.

01

Tree & Canopy Plan

Tree-row direction, spacing, training system, expected mature height/width and planned pruning envelope.

02

Machinery & Platforms

Tractors, sprayers, harvest platforms or other equipment, including height, width, turning space and safe clearance.

03

Irrigation & Orchard Services

Irrigation lines, frost or crop-protection equipment, drainage, farm roads, utility routes and maintenance access.

04

Long-Term Access

Space for pruning, thinning, harvest, module service and replacement without blocking the orchard's operating lanes.

Light, Shade & Crop Protection

Do Not Promise Fruit Performance from the Mounting Structure Alone

Module coverage, transparency, orientation and tracking strategy can change orchard irradiance and microclimate. They can also influence exposure to hail, heavy rain or excessive sun, but the horticultural outcome depends on the fruit variety, climate, orchard system and management strategy.

  • Define the target light or protection function with the agronomic design team.
  • Review module coverage, transparency and row geometry against the orchard's light requirement.
  • Use fixed or tracking geometry only where the selected system and project analysis support it.
  • Do not market one structure as universally suitable for apples, cherries, pears, citrus or other fruit crops.
Hail, rain or sun protection can be a design objective in orchard Agri-PV, but it is not an automatic performance claim for every elevated PV canopy.

Useful Inputs for the Light Review

  • Fruit / cultivarProject horticultural input
  • Canopy systemHeight, width and training geometry
  • Module coveragePV area above the orchard
  • TransparencyIf semi-transparent modules are used
  • PV motionFixed or tracking architecture
  • Protection targetShade, hail or rain objective if required
Structure & Foundation

Verify the Elevated Load Path and Orchard Interface

Greater height and orchard clearance can increase structural and foundation demand, so dimensions and foundation types must remain project-specific.

A

Elevated Primary Structure

Posts, columns, beams, purlins and bracing should be sized from the selected PV geometry, structural loads and required orchard clearance.

B

Module Support

Rails or purlins, clamps and module interfaces must match the selected module and the fixed or tracking architecture.

C

Foundation Interface

Driven-pile, screw or concrete concepts are not automatically interchangeable; use only the foundation route supported by the selected structure and geotechnical design.

Project Inputs

Information Needed Before the Orchard Structure Is Finalized

Orchard plan Tree-row direction and spacing, planting distance, canopy/training system, mature canopy size and planned orchard life.
Operations & machinery Pruning, spraying and harvesting method plus machine/platform dimensions, turning needs, roads and access routes.
PV architecture Module model, dimensions, coverage, fixed/tracking concept, transparency if applicable and preliminary array geometry.
Site & geotechnical Topography, soil/geotechnical information, groundwater, irrigation/drainage, corrosion environment and construction access.
Structural design basis Project location, governing standards and applicable wind, snow, seismic and other required design actions.
Horticultural criteria Any target irradiance, shade, rain/hail protection or microclimate requirements supplied by the orchard/agronomic team.
Technical Verification

Use Project-Level Data Instead of Generic Orchard Claims

Clearance Minimum and operating clearance checked against mature canopy geometry, machinery, platforms and module movement where applicable.
Post & row layout Structural supports coordinated with orchard rows, irrigation, roads and the working width required for orchard operations.
PV geometry Fixed or tracking architecture, module coverage, orientation and tilt/motion range based on project-specific energy and horticultural analysis.
Materials & corrosion Actual structural materials, coatings and fasteners specified for the selected design and exposure environment.
Foundation Foundation product/interface and site capacity based on geotechnical information and structural reactions.
Project documentation Layout, structural information, foundation details, BOM and installation/maintenance documentation within the agreed engineering scope.

Send the Orchard, Machinery and Module Information

Start with the orchard plan and mature canopy geometry, then add machinery/platform dimensions, the module datasheet, site conditions, project design criteria and any horticultural light or protection targets.

Request Orchard Quote → Send Project Drawings
  • Orchard layout and mature canopy dimensions
  • Machinery / platform height and working width
  • PV module datasheet and preliminary array
  • Topography and geotechnical information
  • Project structural design criteria
  • Light, shade or crop-protection targets if available
FAQ

Orchard Agrivoltaic Structure Questions

How should the PV height be selected in an orchard?

Use mature canopy height together with pruning, spraying, harvest equipment, platform/machinery clearance and the selected PV architecture rather than one universal panel height.

Is one orchard Agri-PV layout suitable for every fruit crop?

No. Fruit response to shade, rain protection and microclimate depends on the cultivar, climate, orchard system and management practice. Use project-specific horticultural analysis.

What information is needed for a quotation?

Send the orchard layout, mature canopy dimensions, machinery/platform data, module information, site/geotechnical inputs, structural criteria and any light or crop-protection requirements.
