For sloped tile roofs where downslope load transfer, hook-to-structure fixing, tile clearance and roof protection need careful review. The array should be restrained by the complete engineered load path—not by the roof tile or a marketing label applied to one hook.

  • Tile-Profile Matching
  • Structural Hook Fixing
  • Downslope Load Review
  • Tile Clearance
  • Roof-Interface Protection

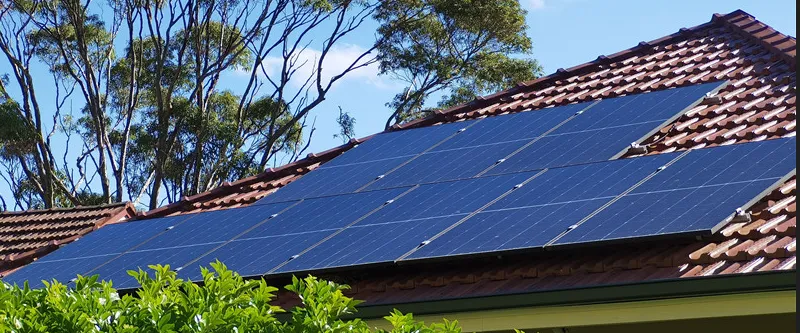

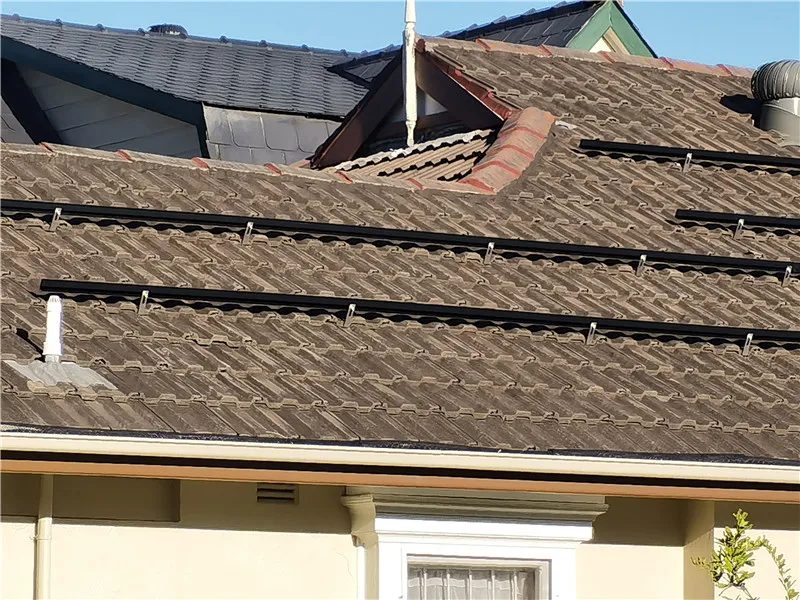

PV mounting system on a sloped tile roof with roof hooks and rails
Restraint comes from the full system Modules, clamps, rails, hooks, structural fasteners and the verified roof support must work as one load path.

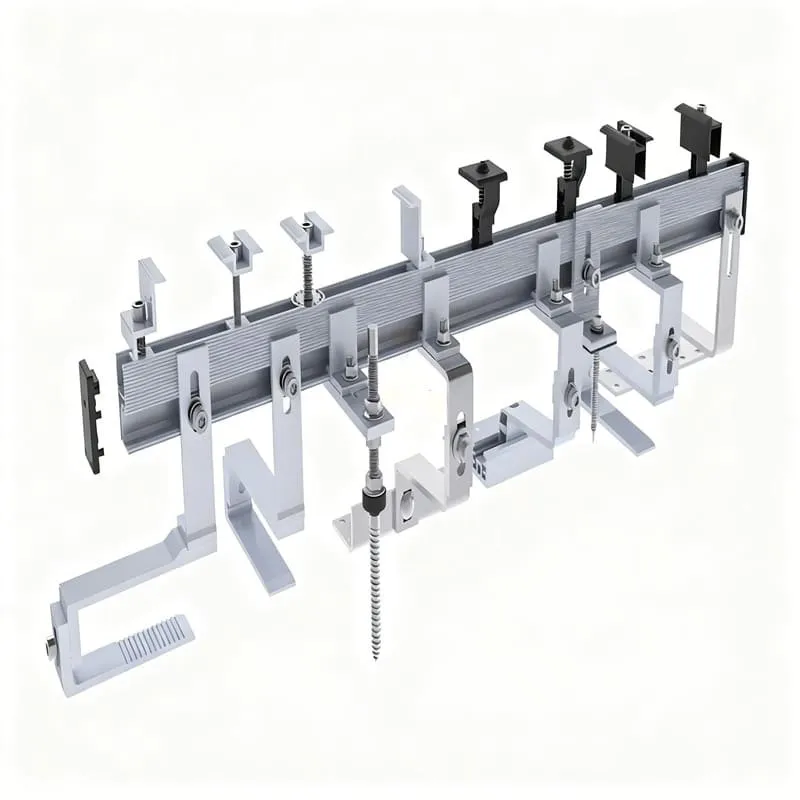

Roof hooks, rails and module clamps forming a tile-roof PV load path
Load-Path Design

“Anti-Sliding” Is a System Requirement, Not a Universal Hook Type

On a pitched roof, gravity creates a downslope force component in addition to wind, snow and other project loads. The roof tile should remain part of the weather-shedding layer; it should not be relied upon as the primary structural restraint for the PV array.

  • Module clamps transfer forces from the module frame into the rail or approved module-support profile.
  • Rails transfer those forces into the roof hooks at the engineered attachment spacing.
  • Roof hooks connect through suitable structural fasteners to the approved roof support.
  • The supporting rafter, deck or other verified member completes the structural load path.
  • Attachment quantity and spacing come from the project calculation, not from a generic “anti-slip hook” count.
If a project uses the term “anti-sliding,” define the required performance through the complete structural system and design loads rather than assuming one special hook provides all downslope restraint.
Tile & Hook Interface

Match Hook Geometry to the Tile and Roof Build-Up

Tile profile, overlap, batten height, structural support and required clearance determine whether a standard, low-profile, long or higher-load hook family is suitable.

Adjustable roof hook positioned beneath a tile roof covering

Pan / Interlocking Tiles

Use a hook whose arm and base geometry fit the tile valley, overlap and available structural fixing position without unintended tile loading.

Adjustable tile roof hook connected to a PV mounting rail

Flat / Plain Tiles

Low-clearance coverings can require dedicated slim hooks, replacement tiles or metal plates rather than a standard high-profile hook.

Tile-roof flashing and roof-hook interface

High-Profile / Curved Tiles

Barrel, S-shaped and similar profiles need enough hook reach and clearance to preserve tile seating and the roof's drainage path.

Tile Clearance & Roof Protection

A Roof Hook Should Not Make the Tile Carry the PV Load

The hook must pass through or beneath the tile covering with enough clearance for the selected roof system. Poor geometry can lift, pinch or point-load the tile and increase the risk of breakage.

  • Check the hook arm position against the tile valley, overlap and surrounding tiles.
  • Use vertical or lateral adjustment only within the documented range of the selected hook.
  • Keep structural fasteners in the approved support and maintain required edge distances.
  • Use replacement tiles, metal plates or another approved detail when the roof or load case requires them.
  • Replace damaged tiles and preserve the original water-shedding path.

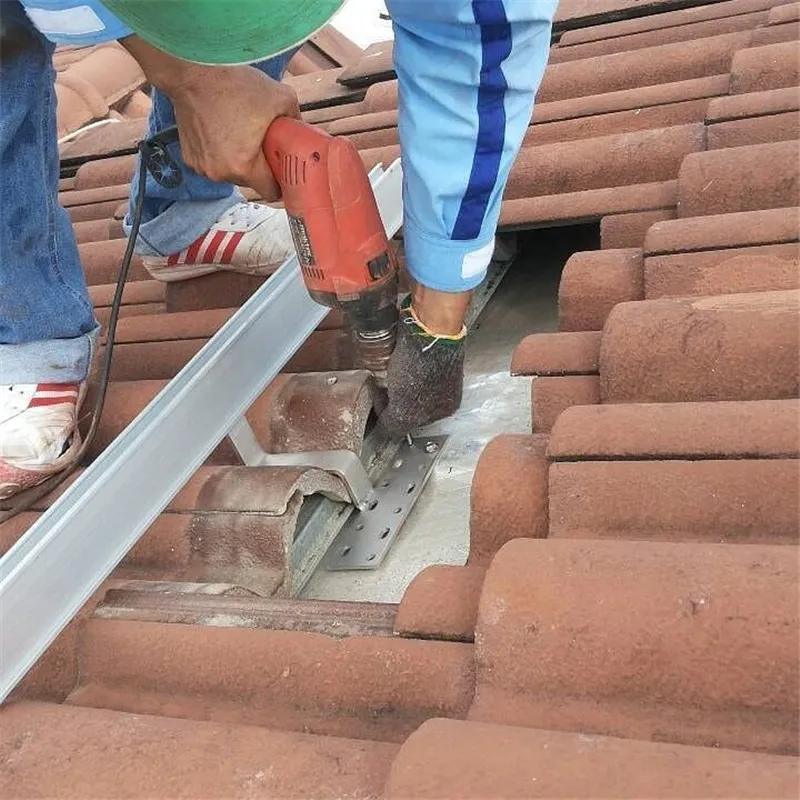

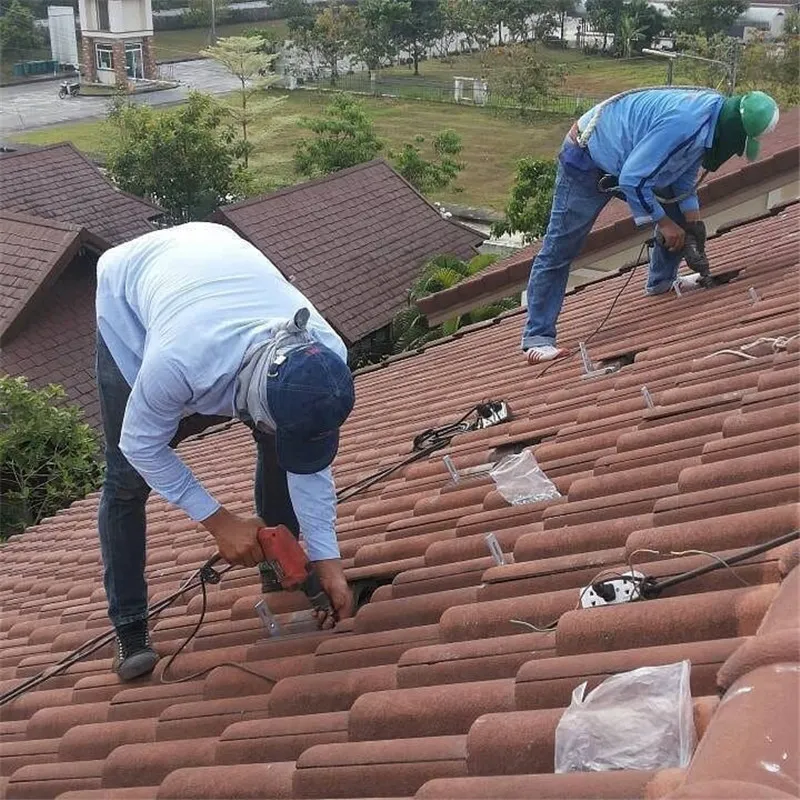

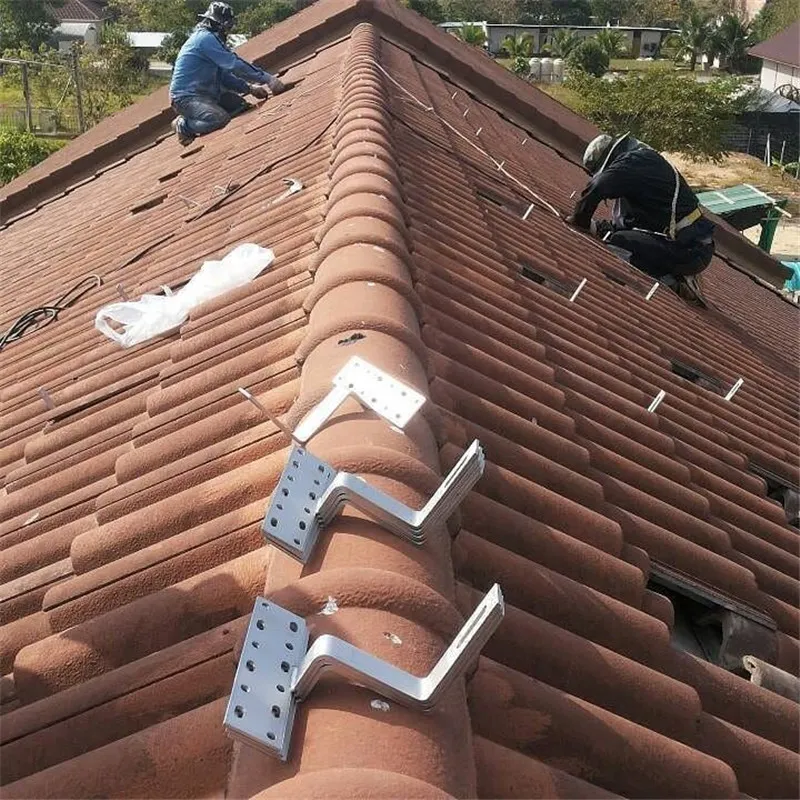

Tile roof hook installation showing structural fixing and tile clearance
Flashing & Weathering

Use the Roof-Interface Detail Specified for the Selected Attachment

Flashing and sealing are product- and roof-specific. They should not be reduced to one generic “waterproof support” claim.

Tile Replacement Flashing

Can replace or cover the tile around selected attachments where the system is designed for that approach.

Deck / Sub-Flashing

May be used where the attachment penetrates the weathering layer and the selected roof system calls for a separate flashing detail.

Product-Specific Seal

Butyl, compression seals or other documented sealing components should only be claimed where they are part of the actual attachment system.

Do not promise a universal “waterproof tile hook.” Confirm the attachment, flashing/sealing method, roof condition and roofing requirements for the actual project.
Engineering Inputs

What to Confirm Before Hook Spacing and the BOM Are Finalized

01

Roof Geometry

Tile profile, roof pitch, tile/batten dimensions and the location of the verified structural support.

02

PV Module

Module dimensions, frame, approved clamp zones, orientation and preliminary array layout.

03

Design Loads

Project location and applicable wind, snow, seismic and other structural design criteria.

04

Roof Interface

Hook family, structural fastener, tile clearance, rail interface and any required flashing or replacement-tile detail.

Technical Verification

Use Model-Level Data Instead of a Generic Material Specification

Final materials, dimensions and adjustment ranges should come from the selected roof hook, rail and fastener documentation.

Tile compatibility Verified tile profile, overlap and required clearance rather than a blanket list of all clay/concrete tile shapes.
Structural fixing Approved rafter, deck, concrete or other support plus the specified fastener, embedment and edge distances.
Hook geometry Base/arm dimensions and documented vertical/lateral adjustment range for the selected model.
Rail interface Compatible rail/adapter and fastener, including the permitted adjustment and installation torque.
Tile protection Required hook clearance, tile modification limits and any replacement-tile or metal-plate detail.
Weathering Attachment-specific flashing, sub-flashing, butyl/seal or other documented water-management detail.
Materials Product-specific aluminum, stainless steel, coated steel and fastener materials according to the selected components and exposure conditions.
Attachment spacing Set by the structural calculation using project loads, roof geometry, module layout and verified component capacities.

Send the Tile, Roof Pitch and Structural Details

A roof photo is useful, but hook selection also needs the tile profile, roof build-up, structural fixing information, module data and project design criteria.

  • Tile profile photos and roof pitch
  • Tile / batten dimensions and structural support if available
  • PV module datasheet and preliminary layout
  • Project location and structural design criteria
  • Required flashing or roof-interface constraints
FAQ

Steep-Slope Tile Roof Mounting Questions

Is an “anti-slip roof hook” a separate universal product type?

No. Downslope restraint is created by the complete engineered mounting system. The appropriate hook still has to match the tile, structural support, rail interface and project loads.

Should the roof tile carry the solar-array load?

No. The attachment should transfer load into the approved roof structure. The tile remains part of the weather-shedding layer and should not be unintentionally loaded by the hook.

Does every tile-roof hook need flashing?

No single flashing rule applies to every system. Use the attachment and roof-interface detail specified for the selected hook, tile construction and local roofing requirements.

What should I send for a quotation?

Send tile-profile photos, roof pitch, roof/support information, module data/layout, project location/design criteria and any flashing or roof-protection requirements.
