Pitched Roof Solar Mounting System
Easy Solar supplies roof-specific PV mounting for tile, shingle, slate and pitched metal roofs. Match roof hooks, seam clamps, L feet, hanger bolts, rails, flashing and fasteners to the roof covering, supporting structure and project loads.
- Tile / Shingle / Slate / Metal
- Rail-Based & Direct-Attach Options
- Flashing & EPDM Sealing Parts
- Project BOM & OEM Supply
Choose the Mounting Path by Roof Covering
Use the roof type as the first decision point, then confirm the supporting structure, module layout and design loads before final component selection.

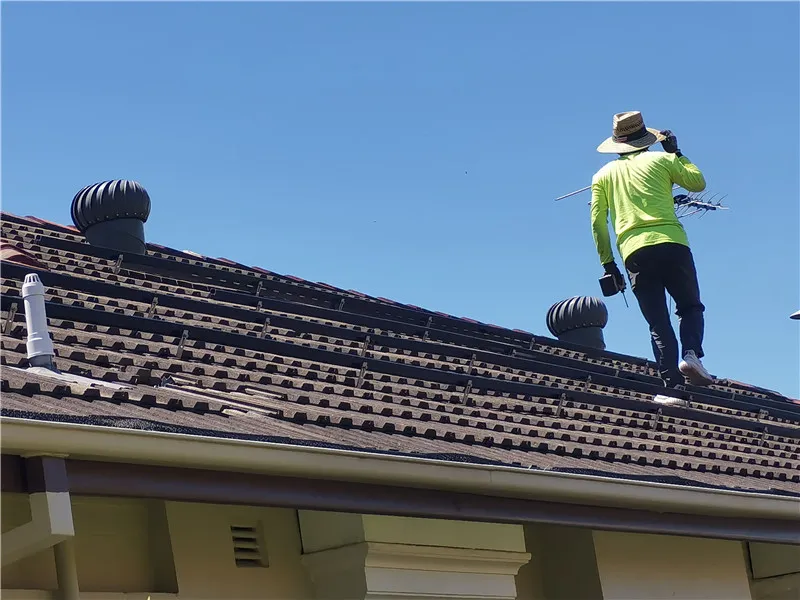

Tile Roof
Adjustable roof hooks connect rail-based racking to approved roof structure beneath clay or concrete tiles.
View Tile Roof System →

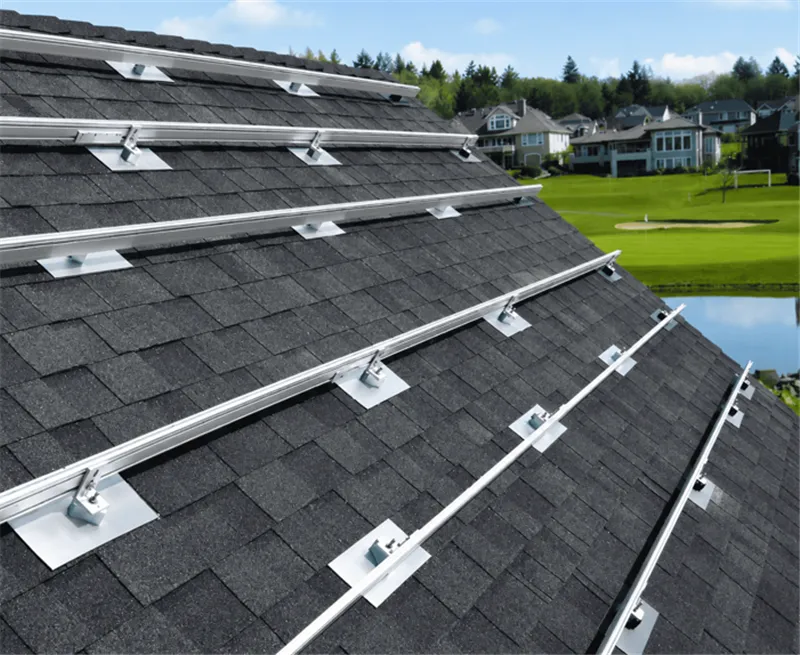

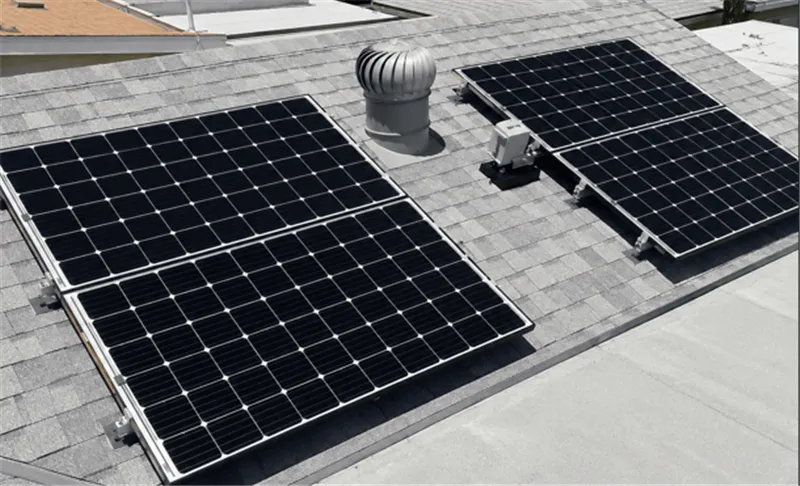

Shingle & Slate

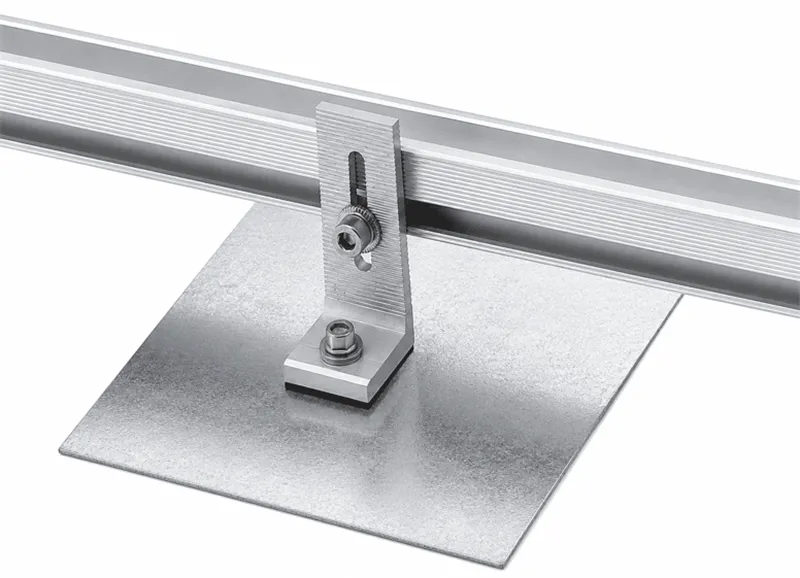

Flashing-based attachments help manage penetrations while rails and module clamps support the array.
View Shingle Roof System →
Standing Seam Metal
Compatible seam clamps can support rail-based or direct-attach layouts without drilling through the roof sheet.
View Standing Seam System →

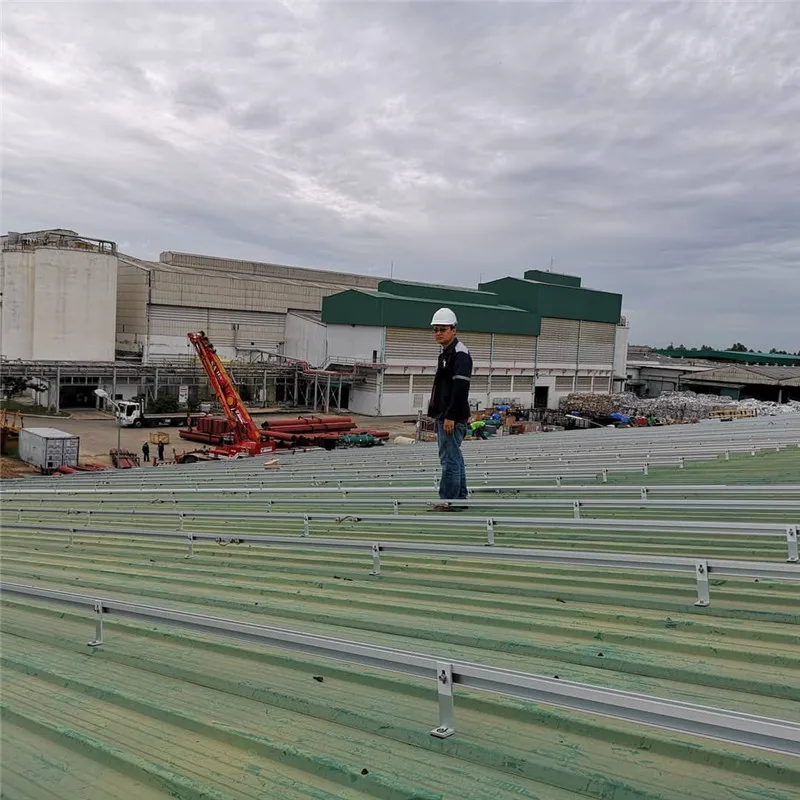

Corrugated & Trapezoidal Metal
L feet, hanger bolts, mini rails or direct-fix brackets are selected to suit the profile and supporting purlins or rafters.
View Metal Roof System →Roof Type, Attachment and Racking at a Glance
Compare common attachment paths by roof type so installers, EPC buyers and distributors can move quickly from roof identification to a suitable mounting approach.
| Roof covering | Common attachment | Racking path | Water-ingress control | Best next page |
|---|---|---|---|---|
| Clay / concrete tile | Roof hooks fixed to approved structure | Aluminum rail + mid/end clamps | Roof-specific hook position and compatible flashing where required | Tile roof → |
| Asphalt shingle / selected slate | Flashed roof attachments | Rail-based module mounting | Flashing, sealing parts and correct fastener installation | Shingle roof → |
| Standing seam metal | Profile-compatible seam clamp | Rail-based or direct attach | Clamp attachment can avoid roof-sheet penetration when seam compatibility is confirmed | Standing seam → |
| Corrugated metal | Hanger bolt, L foot or direct-fix bracket | Long rail, mini rail or direct attach | EPDM washer / gasket and project-specific sealing detail | Corrugated roof → |
| Trapezoidal metal | Mini rail, short rail, L foot or direct-fix bracket | Reduced-rail or standard rail layout | EPDM sealing strip / pad with profile-matched fasteners | Trapezoidal roof → |
Final attachment selection should be confirmed from roof photos or drawings, roof profile, supporting structure, module layout, wind and snow loads, and local installation requirements.
What Determines the Final Mounting Configuration?
The correct system is not determined by roof angle alone. Send the information below so the attachment method, rails, clamps, fasteners and sealing parts can be matched as one project package.

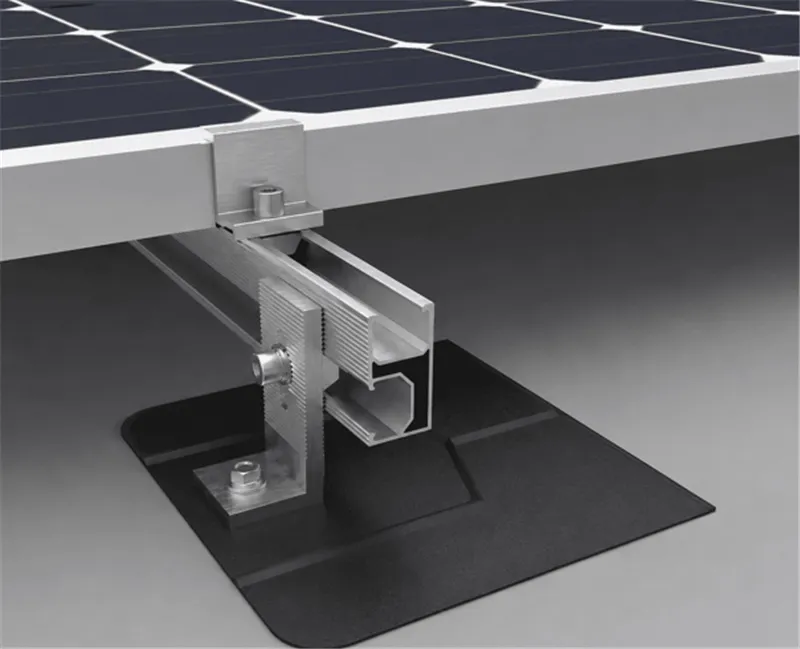

Core Parts in a Pitched-Roof PV Mounting Kit
A complete project package can combine the attachment, racking, sealing and grounding parts required for the selected roof type.
General System Reference for Project Review
Use these points as a quotation reference. Final configuration depends on the actual roof and structural conditions.
Materials
AL6005-T5 aluminum alloy, SUS304 stainless steel fasteners, EPDM rubber and project-specific accessories.
Module Layout
Portrait or landscape layouts according to module size, roof geometry and project design.
Attachment Families
Roof hooks, seam clamps, L feet, hanger bolts, flashing attachments, mini rails and selected direct-attach options.

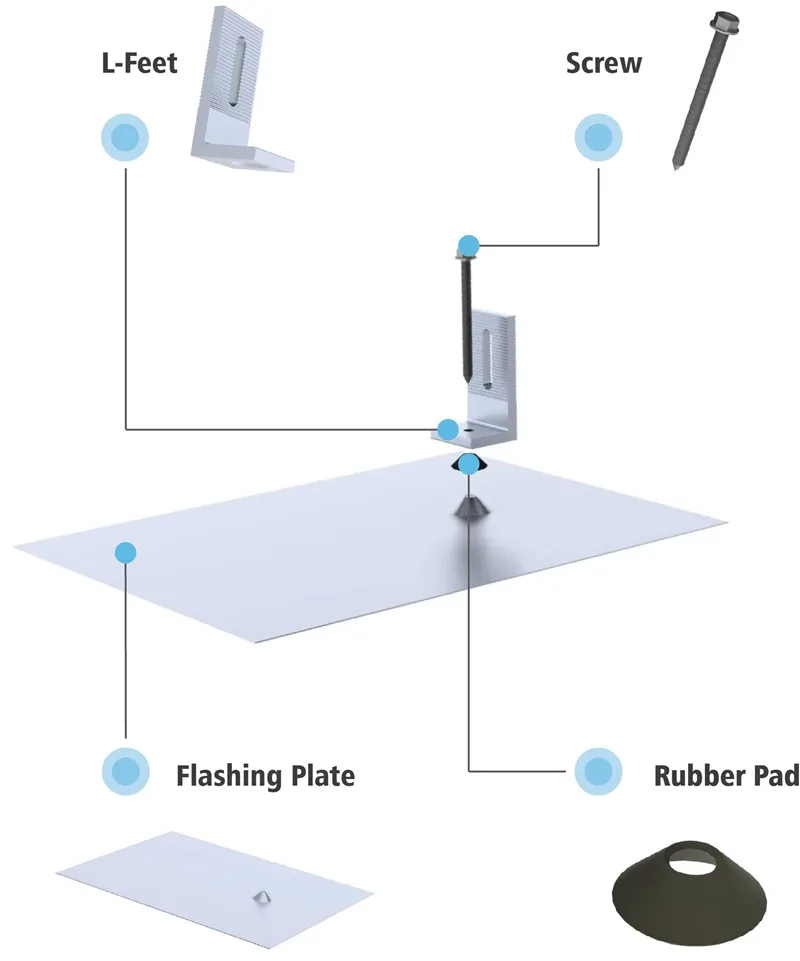

Roof Protection
Flashing, EPDM washers, sealing pads or clamp-based non-penetrating methods depending on roof type.
Design Review Inputs
Roof material, profile, pitch, attachment position, module layout, wind load and snow load.
Supply Support
Project BOM, component matching, quotation, OEM packaging and export-ready supply for installers and distributors.
From Component Matching to Export-Ready Delivery
Easy Solar supports project and wholesale buyers with matched mounting components, packaging options and factory-direct quotation.

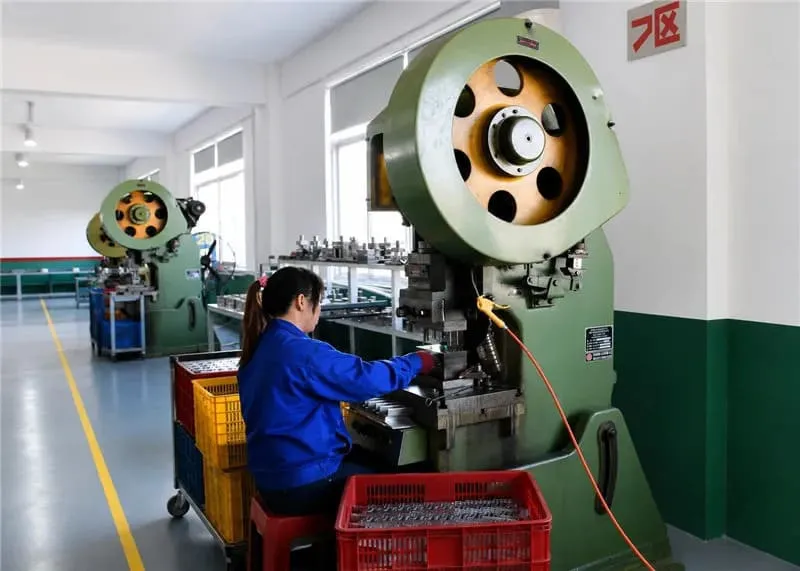

Manufacturing Control
Rails, hooks, L feet, brackets, clamps, flashing and compatible hardware for project and wholesale orders.
Component Matching
Match the attachment interface, rail profile, clamps, fasteners and sealing parts as a complete bill of materials.
Export-Ready Supply
Bulk orders, distributor supply, project shipments and customized packaging are available for international customers.
Questions Buyers Usually Need Answered Before Quotation
How do I choose the right roof attachment?
Start with the roof covering and profile, then confirm the rafter or purlin structure, module layout and project loads. Tile roofs commonly use roof hooks, compatible standing seams can use seam clamps, and corrugated or trapezoidal roofs may use L feet, hanger bolts, mini rails or direct-fix brackets.
Can a standing seam system avoid roof penetration?
For compatible standing seam profiles, seam clamps can secure the mounting structure without drilling through the roof sheet. Seam geometry, clamp compatibility and project loads should be confirmed before final selection.
What should I send for a mounting-system quotation?
Send roof photos or drawings, roof covering or profile, roof pitch, rafter or purlin information, PV module size and layout, project location, wind and snow load requirements when available, and estimated order quantity.
Can Easy Solar supply a complete kit and OEM packaging?
Yes. Easy Solar can match rails, roof attachments, module clamps, fasteners, grounding parts and sealing accessories as a project BOM, with OEM packaging and bulk-order quotation support.
Request a Pitched Roof Mounting Quote
Send the roof profile, supporting structure, module layout and project load information. Easy Solar can match the attachment method and complete component package for quotation.
- Roof photos / drawings and roof profile
- Rafter or purlin type and spacing
- PV module size and array layout
- Wind and snow load requirements
- Order quantity and packaging needs
