Shingle Roof Solar Mounting System
Select the roof attachment from the shingle condition, roof structure, approved structural fixing path and the weathering method used at the penetration. Rafter-mounted, approved deck-mounted and rail-less systems should be treated as different product architectures rather than one universal shingle mount.
- Asphalt / Composition Shingle
- Rafter or Approved Deck Fixing
- Flashed / Sealed Interfaces
- Rail-Based or Rail-Less
- Product-Specific Weathering
Confirm the Roof Covering, Condition and Structural Substrate
This page is intended for asphalt and composition shingle roofs. Before choosing hardware, confirm the roof condition and determine whether the selected product is designed for a rafter, an approved roof deck, or both.
- Identify asphalt/composition shingle type, age, visible damage and previous repairs.
- Confirm roof pitch and the usable array area around ridges, valleys, vents and other obstructions.
- Identify rafter/truss locations or the approved deck construction for the selected attachment.
- Check roofing-manufacturer, warranty, code or project requirements that affect penetrations and weathering.
- Treat shake, slate and metal shingles as separate roof-covering applications.
Choose the Approved Load Path Before the Rail or Module Interface
Current shingle-roof products can use different structural fixing methods. The selected product documentation determines which path is valid.
Rafter / Structural-Member Attachment
A lag screw or other approved structural fastener connects the roof mount into verified framing. Fastener diameter, embedment, edge distance, attachment spacing and installation method are product- and project-specific.
Approved Deck Attachment
Some tested systems are specifically designed to fasten to an approved roof deck, or to either deck or rafter. Do not convert a rafter-only product into a deck-mount system without product data supporting that use.
Flashing and Top-Mount Seals Are Different Weathering Methods
Weather management should follow the complete attachment assembly, not a generic “waterproof mount” claim.

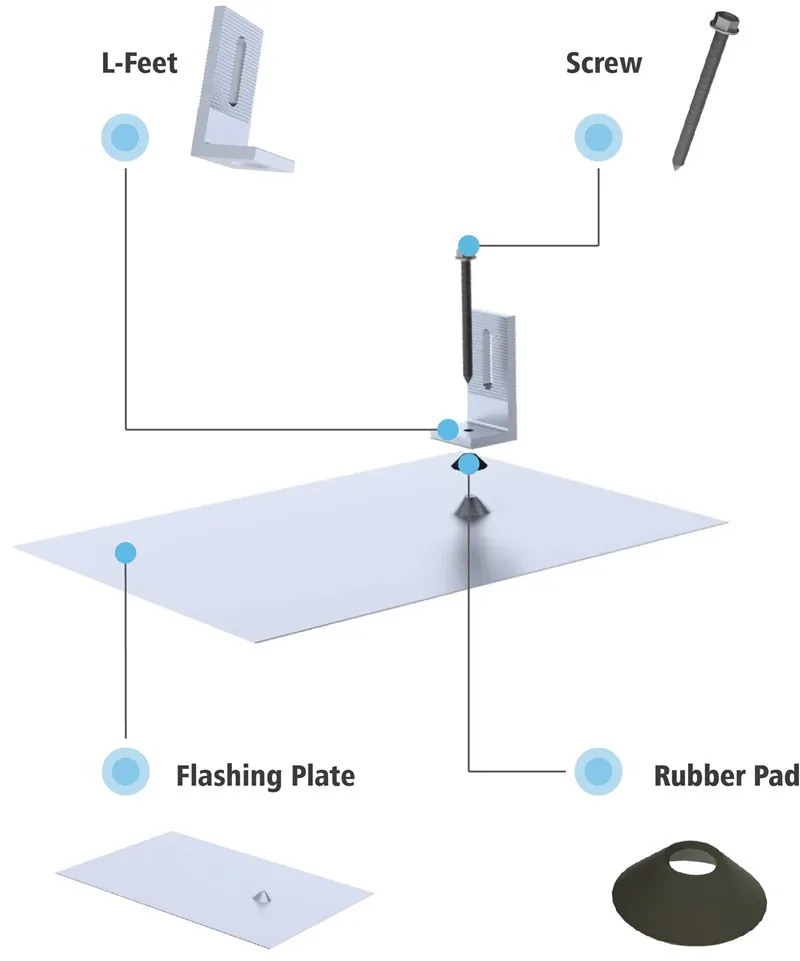

Traditional Flashing

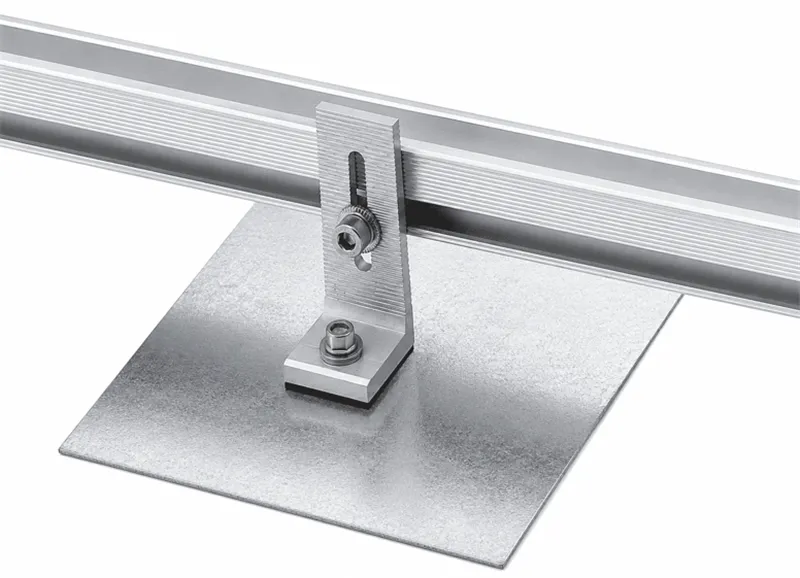

Metal flashing is integrated with the shingle courses so water sheds over and around the structural penetration.
Top-Mount / Microflashing
Some current mounts use a compact factory-defined sealing interface above the shingle surface. Use only the complete tested assembly and installation method.
Construction / Re-Roof Interfaces
Base-and-post attachments can be integrated during new construction or re-roofing where the selected system is designed for that workflow.
Rail-Based and Rail-Less Systems Should Be Compared Separately

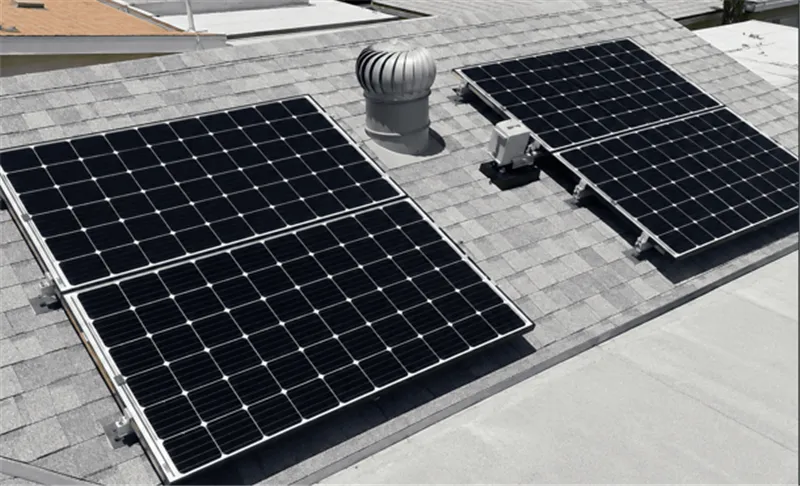

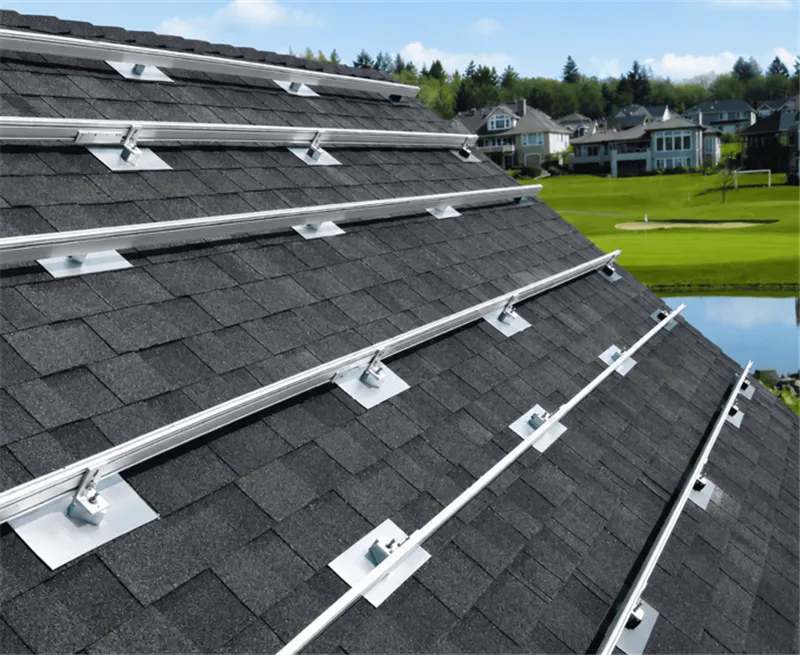

Shingle-roof attachments can connect to a continuous rail, while newer systems can use compact rail-less or mini-rail interfaces. The roof attachment, module connection and electrical bonding still need to be approved as one system.

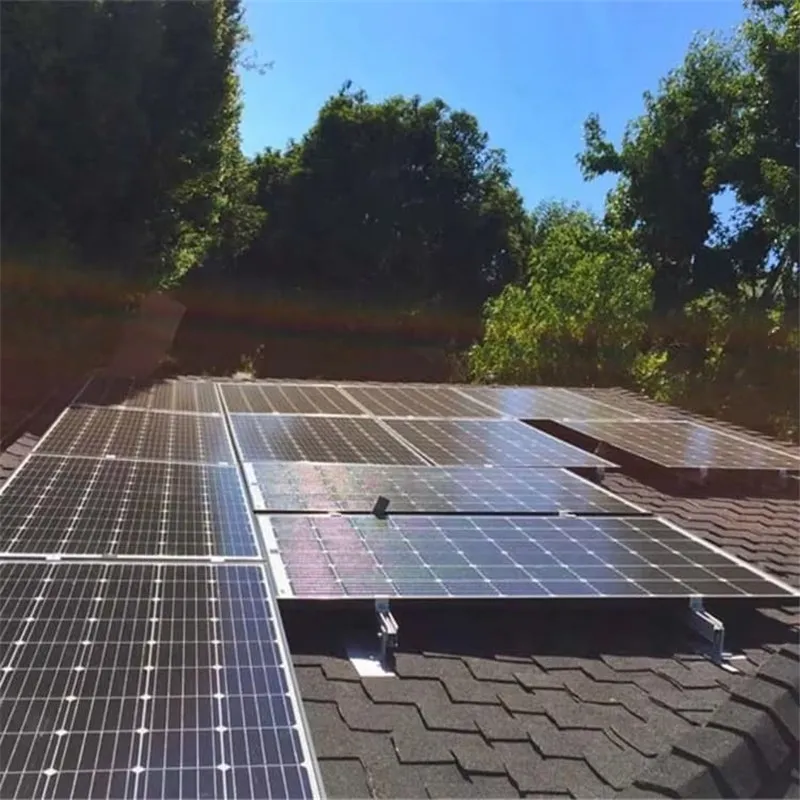

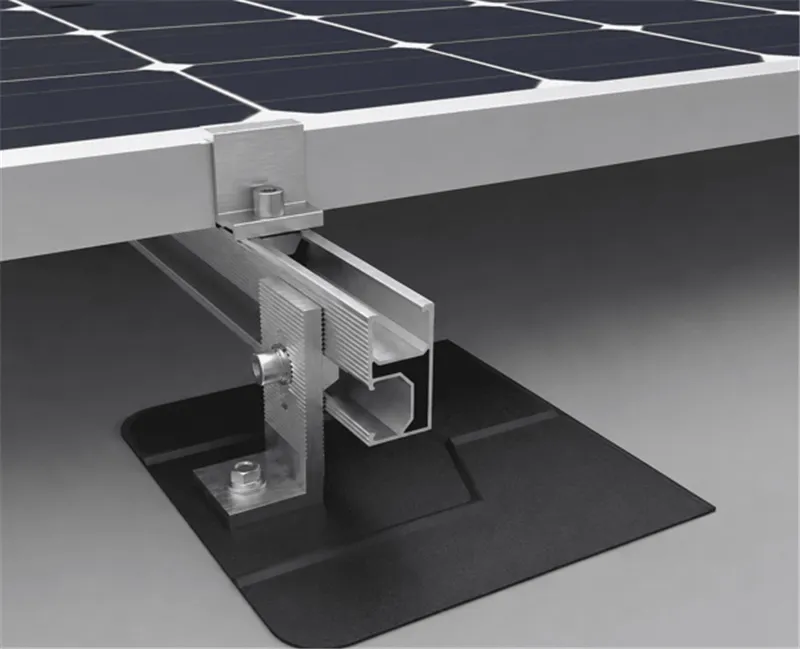

- Rail-based: roof attachment connects to an L foot, adapter or rail profile that carries module clamps.
- Rail-less / mini-rail: compact module-support hardware reduces or eliminates the traditional continuous rail.
- Confirm module-frame clamp zones, attachment spacing and bonding method for the selected architecture.
- Do not assume an L foot, rail or clamp proves compatibility with an unrelated roof attachment.
Information Needed Before Attachment Spacing Is Finalized
Roof Condition
Shingle type, age, repairs, pitch and areas where the roof covering should not be disturbed.
Structure / Deck
Rafter or truss spacing, deck material/thickness and the structural fixing path permitted by the selected product.
PV Layout
Module dimensions, frame/clamp zones, orientation, support architecture and preliminary array layout.
Design Basis
Project location, roof zones and applicable wind, snow and other structural design criteria.
Use Product-Level Data for the Final Shingle Roof System
Final materials, fasteners, sealing methods and capacities should come from the selected mounting product and project calculation.
| Roof application | Verified asphalt/composition shingle construction and roof condition. |
|---|---|
| Structural load path | Rafter/structural-member attachment or an approved deck-mount method documented for the selected product. |
| Weathering method | Under-shingle flashing, top-mount/microflashing, factory seal or another documented roof-interface assembly. |
| Module support | Compatible continuous rail or rail-less/mini-rail architecture with verified module-frame interface. |
| Fastening data | Product-specific screw/lag type, embedment or deck fastener pattern, installation torque and allowable/tested loads. |
| Materials | Actual base, flashing, adapter, rail and fastener materials/coatings for the selected system and exposure conditions. |
| Attachment spacing | Set from roof zones, module layout, verified component capacities and applicable structural design criteria. |
Send the Roof and Structural Details
Provide roof photos, roof condition, structure/deck information, module data and project design inputs so the attachment and module-support architecture can be matched to the actual roof.
- Shingle type, age & roof photos
- Roof pitch & usable dimensions
- Rafter / truss / approved deck information
- PV module datasheet & preliminary layout
- Project location & structural design criteria
Shingle Roof Mounting Questions
Must a shingle-roof solar attachment always be fixed to a rafter?
No. Many systems use structural-member attachment, while some products are specifically tested for approved roof-deck mounting or for either deck or rafter. Follow the selected product documentation.
Does every shingle-roof mount use traditional flashing?
No. Traditional attachments can use flashing integrated with the shingle courses, while some newer top-mount products use their own tested surface-sealing or microflashing system.
Can a shingle roof use a rail-less PV mounting system?
Yes, compatible rail-less or mini-rail systems exist for composition shingle roofs. The roof attachment, module interface, bonding and structural spacing must be approved as one system.
What information is needed for a quotation?
Send roof/shingle photos, roof condition and pitch, rafter/deck information, module data/layout, project location and structural design criteria.
