Solar Panel Mounting Brackets
Source PV brackets by connection function—not by a generic product photo. Easy Solar supplies roof-to-rail brackets, rail interfaces, base and adapter plates, structural angle brackets and drawing-based custom mounting hardware for professional solar projects.
- Roof-to-Rail Interfaces
- Rail Connection Hardware
- Base & Adapter Plates
- Drawing-Based OEM
- Aluminum / Stainless / Steel
What Connection Does the Bracket Need to Make?
For B2B procurement, bracket function and interface compatibility are more useful starting points than broad labels such as “flush” or “angle.”
Roof Connection Brackets
Profile or attachment-side brackets used between a compatible roof fixing point and the solar rail system.
Rail Interface Brackets
L-shaped, plate or adapter components connecting rails to structural members, roof attachments or support frames.
Base & Adapter Plates
Flat, bent or slotted plates used to transition between different bolt patterns, heights or mounting interfaces.
Custom PV Brackets
Stamped, bent, drilled or machined brackets produced from drawings, samples or agreed dimensional specifications.

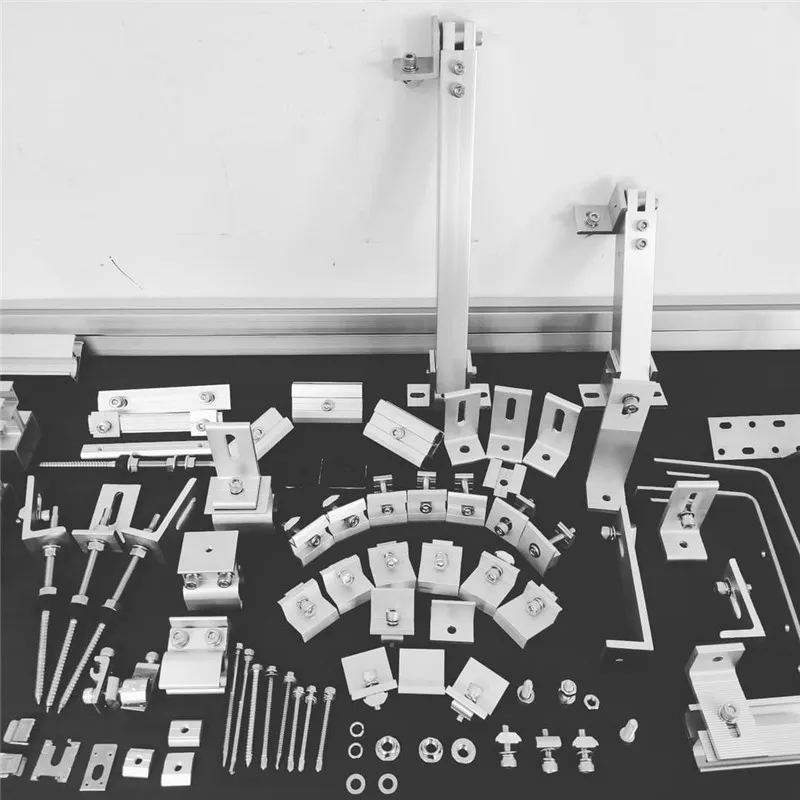

Bracket, L Foot, Roof Hook, Clamp or Hanger Bolt?
These parts are often called “brackets” in search, but they perform different jobs in a PV mounting system. Separating them helps buyers reach the correct component page faster.
| Component | Primary function | Typical interface | Best next page |
|---|---|---|---|
| Mounting bracket / adapter plate | Connects or supports two mounting interfaces | Roof attachment ↔ rail, structure ↔ rail, base ↔ support | Stay on this page |
| L foot | Adjustable roof/rail connection used in compatible systems | Roof fastener or hanger bolt ↔ rail | View Solar L Feet → |
| Roof hook | Tile-roof attachment that bypasses the tile to the approved structure | Tile roof structure ↔ rail | View Roof Hooks → |
| Module clamp | Secures the PV module frame | Module frame ↔ rail or support profile | View Panel Clamps → |
| Hanger bolt / solar fastener | Transfers roof load into the approved supporting structure | Roof covering ↔ timber/steel support | View Hanger Bolts → |
PV Bracket Families for Roof, Rail and Structural Interfaces
The examples below represent sourcing families. Final geometry, fasteners and load capacity depend on the complete mounting system and project design.
Profile Roof Brackets
Roof-side brackets designed around compatible corrugated, trapezoidal or project-specific metal roof interfaces.
Rail Connection Brackets
Brackets and adapters matched to rail channels, T-bolts, structural members or roof-attachment hardware.
Base & Low-Profile Adapter Brackets
Compact base or adapter parts used where the required interface calls for a low-profile or direct connection arrangement.
Angle & Bent Support Brackets
Fixed-angle or project-specific bent components for rail, support-frame and structural connection requirements.
Roof-to-Rail Adapter Brackets
Connection hardware used inside a roof mounting assembly after the roof-specific attachment method has been selected.
Drawing-Based Custom Brackets
Custom dimensions, bends, holes, slots, material and finish produced from an approved drawing or sample specification.
A Bracket Must Match Both Sides of the Connection
A useful RFQ should define the bracket geometry and the two interfaces it connects. Hole and slot dimensions alone are not enough if the rail channel, bolt head, roof fixing or support member is unknown.
- Overall length, width, height, thickness and bend angle
- Hole diameter, elongated-slot dimensions and center-to-center positions
- Rail profile, T-bolt / hex-bolt size and required adjustment range
- Roof-side, structure-side or base-side mating geometry
- Left/right-hand, mirrored or repeated bracket orientation where applicable
Select Material and Finish for the Actual Interface
Aluminum, stainless steel and galvanized/carbon steel brackets serve different geometries, environments and manufacturing processes. Material grade and finish should be confirmed together with structural and corrosion requirements.
- Aluminum for compatible lightweight bent, extruded or plate bracket designs
- Stainless steel for selected roof hooks, plates and corrosion-resistant connection parts
- Galvanized or coated steel for project-specific structural brackets and support hardware
- Anodizing, passivation, galvanizing, zinc coating or powder coating as specified by the approved drawing
What to Send for an Accurate Bracket Quotation
A complete RFQ reduces dimensional assumptions and makes material, process and compatibility review faster.
Drawing, CAD or Sample Photo
Provide the latest drawing revision, CAD data if available, or clear sample photos with reference dimensions.
Roof / Rail / Structure Interface
Explain where the part is used and identify the mating roof attachment, rail, purlin, base or support.
Dimensions, Holes & Slots
Specify plate thickness, bend angles, hole diameters, slot length/width and critical center distances.
Fastener & Rail Details
Provide bolt size/head type, nut/washer requirements and rail-channel/profile dimensions where compatibility matters.
Grade & Surface Finish
State aluminum/stainless/steel grade where known, plus anodizing, passivation, galvanizing, coating or other finish.
Quantity & Packaging
Share sample quantity, production volume, labeling, kit packing, carton/pallet requirements and delivery destination.
Drawing-Based PV Bracket Manufacturing
Custom bracket projects can be reviewed from drawings or samples when standard accessory geometry does not fit the required interface. Production feasibility depends on material, thickness, tolerances, forming method, tooling and quantity.
- Cutting, stamping/punching, drilling and bending for suitable bracket designs
- Machining or welding where the approved part design requires additional processing
- Hole/slot and bend-position inspection against the confirmed drawing
- Surface treatment, compatible fastener kitting and project labeling
Bracket Processing, Inspection and Project Packing
Production content is kept together here rather than repeating “manufacturer,” “supplier” and “OEM” throughout the page.
Cutting & Forming
Bracket geometry is produced around the confirmed drawing, material, thickness, bend and hole requirements.
Dimensional Inspection
Critical dimensions, holes, slots, bend angles, connection faces and surface condition can be checked against the agreed specification.
Kit & Export Packing
Brackets and compatible fasteners can be packed as loose components or project sets with labels, cartons and pallets.
PV Mounting Bracket RFQ Reference
Final values depend on the bracket drawing and complete mounting-system interface.
| Primary product scope | Roof-to-rail brackets, rail connection brackets, base/adapter plates, angle/bent brackets and drawing-based custom PV mounting brackets. |
|---|---|
| Related but separate parts | L feet, roof hooks, module clamps, hanger bolts/solar fasteners and flashing are routed to their dedicated component pages. |
| Material options | Aluminum alloy, stainless steel, galvanized/carbon steel or drawing-specified material depending on part design. |
| Finish options | Anodizing, passivation, hot-dip galvanizing, zinc coating, powder coating or drawing-specified finish where compatible with the material/process. |
| Key dimensions | Length, width, height, thickness, bend angle, hole diameter, slot dimensions, hole centers and mating-interface geometry. |
| Compatibility inputs | Rail profile/channel, T-bolt or hex-bolt size, roof/structure-side fixing, support geometry and installation drawing. |
| Custom supply | Drawing/sample review, processing, surface treatment, compatible fastener kitting, labels and project packaging subject to feasibility review. |
Solar Panel Mounting Bracket Questions
Answers for professional buyers comparing bracket function, compatibility and custom-production requirements.
What counts as a solar panel mounting bracket?
On this page, a bracket is a metal connection or support part such as a roof-to-rail bracket, rail adapter, base plate, angle bracket or custom bent/stamped component. Module clamps, roof hooks, L feet and hanger bolts have separate primary functions.
What is the difference between a bracket and a solar panel clamp?
A mounting bracket usually connects roof, rail, base or structural interfaces. A module clamp secures the PV module frame to a rail or supporting profile.
Can you manufacture brackets from drawings or samples?
Custom parts can be reviewed from dimensioned drawings, CAD data or samples/photos. Feasibility depends on material, thickness, tolerances, forming process, tooling and order quantity.
What information is needed to match a bracket to a solar rail?
Provide the rail profile/channel drawing, bolt or T-bolt size, bracket hole/slot geometry, required adjustment range and the connection on the opposite side of the bracket.
What should I send for a bracket quotation?
Send the drawing or reference photo, application, mating interfaces, dimensions, holes/slots, material/finish, compatible fasteners, quantity and packaging requirements.
Send the Bracket Drawing and Interface Details.
Easy Solar can review the part geometry, mating rail/structure, material, finish and quantity, then prepare a project RFQ and compatible hardware list.
- Drawing / CAD / sample photo
- Roof, rail or structural application
- Dimensions, bend angles, holes & slots
- Rail profile & fastener details
- Material, finish, quantity & packing
